Industrial Motors

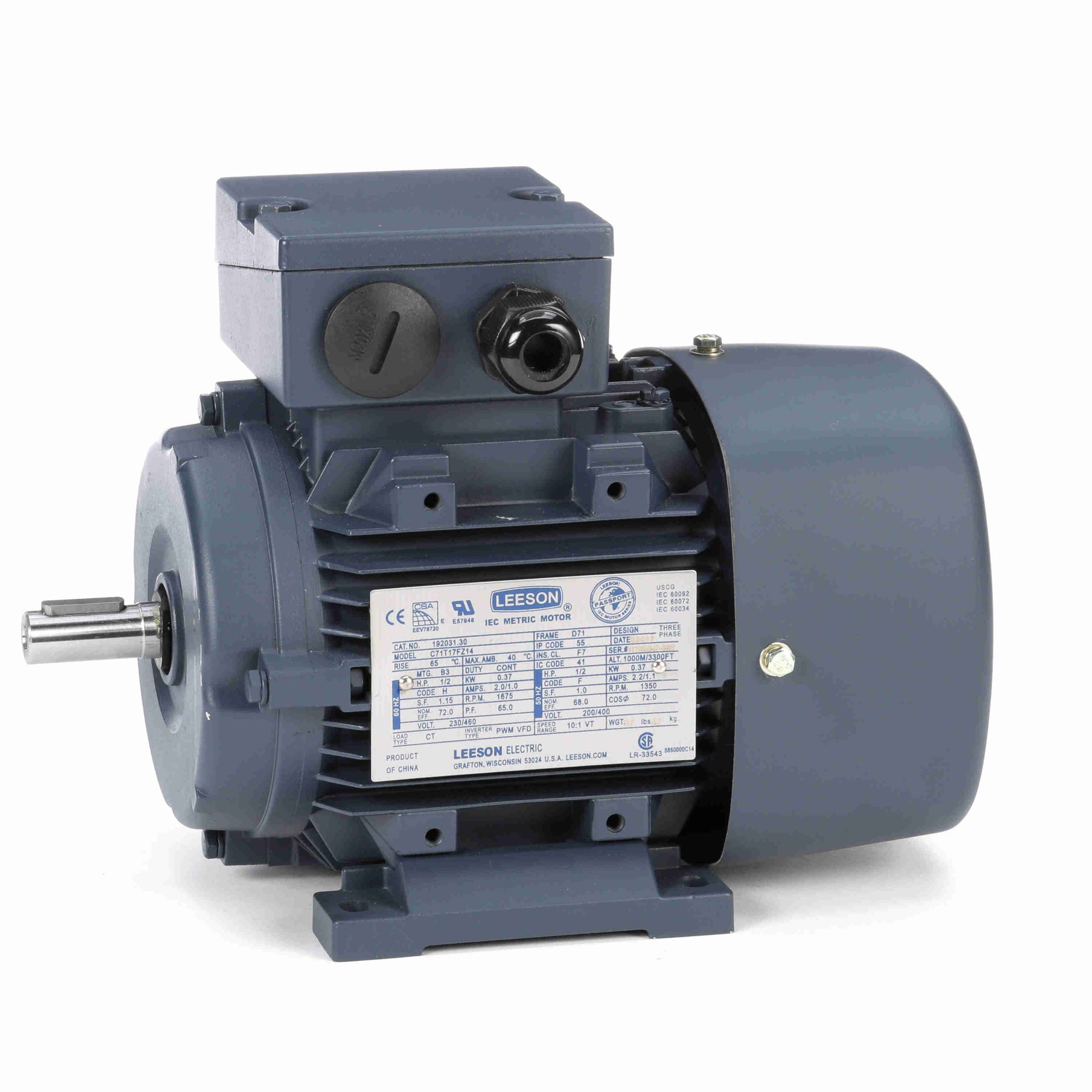

Leeson Electric 119422.00, 1 HP, 1800 RPM, 80M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Leeson Electric 119422.00, 1 HP, 1800 RPM, 80M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

$1,493.00
$1,493.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,493.00 $806.22
Sale

119422.00, 1 HP, 1800 RPM, 80M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:230/460 V
Current:3.0/1.5 A
Speed:1740 rpm
Service Factor:1.15
Phase:3
Efficiency:85.5 %
Power Factor:75
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:L
Frame:80M
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:13.18 in
Frame Length:5.11 in
Shaft Diameter:0.750 in
Shaft Extension:1.57 in
Assembly/Box Mounting:F3
