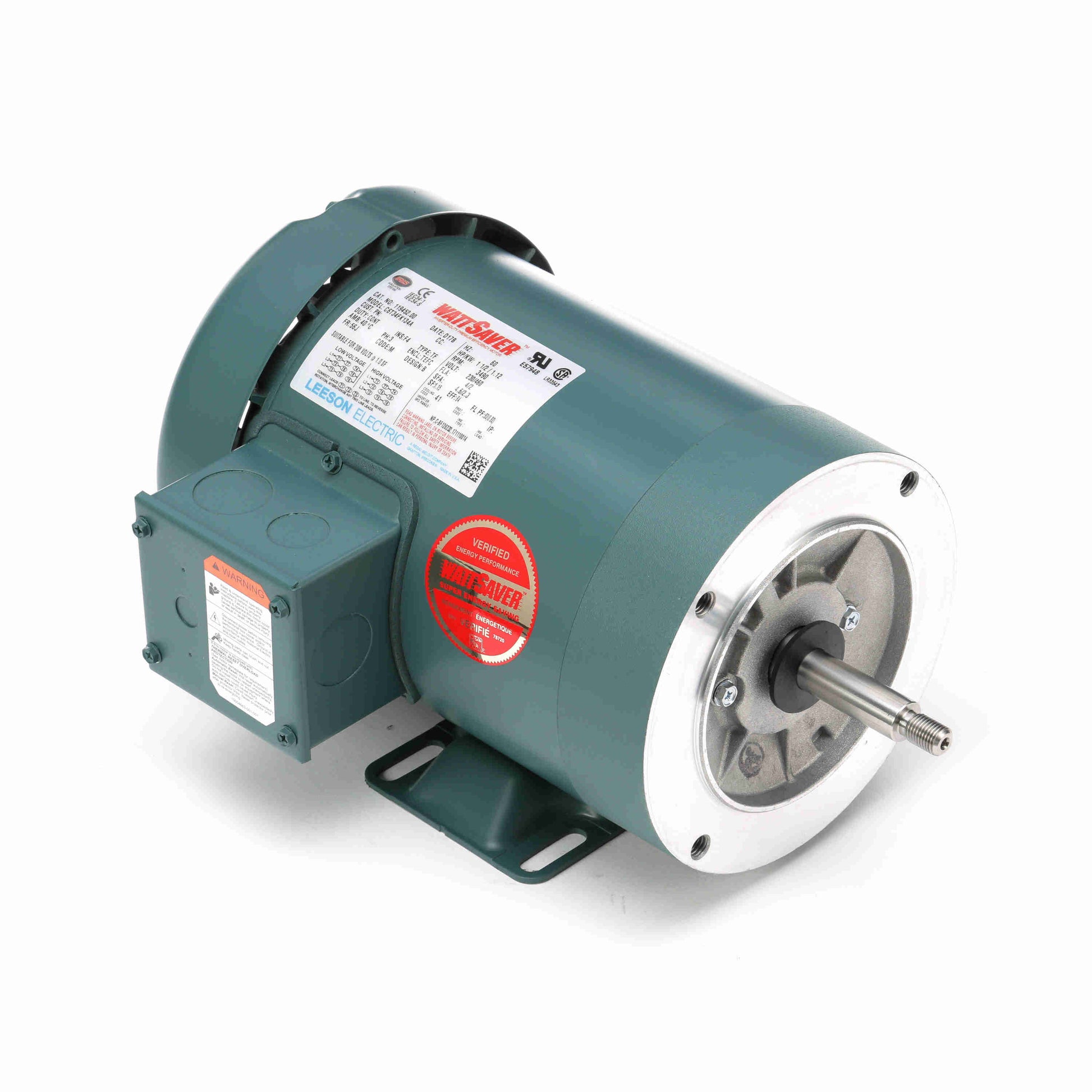

Leeson Electric 119452.00, 1 1/2 HP, 3600 RPM, 56J FR, 208-230/460 Vac, 3 PH, TEFC, C-Face with Base, Jet Pump

119452.00, 1 1/2 HP, 3600 RPM, 56J FR, 208-230/460 Vac, 3 PH, TEFC, C-Face with Base, Jet Pump.

Engineering Data

Volts 230 Volts 460 Volts
FL Amps 4 FL Amps 2 FL Amps
SF Amps 4.6 SF Amps 2.3 SF Amps

RPM 3600 Hertz 60
HP 1 1/2 Duty CONTINUOUS Type TF
KW 1.12 SF 1.15 Phase 3
Frame 56J Design B KVA Code M
Ambient 40 Protection NOT Therm.Prot. 9700K46
Insulation Class F Eff(75%) PF 82
Eff(100%) 84 CSA Y Bearing OPE 6203
UL Y-(LEESON UL REC) CE Y Bearing PE 6205
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 35 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
Shaft Diam. 5/8 IN Cust Part No. Packaging B
Winding T632173 Carton Label Leeson Wattsaver
Group 3 Iris
Paint GREEN (ENAMEL) Hazardous Location NONE Test Card 01
