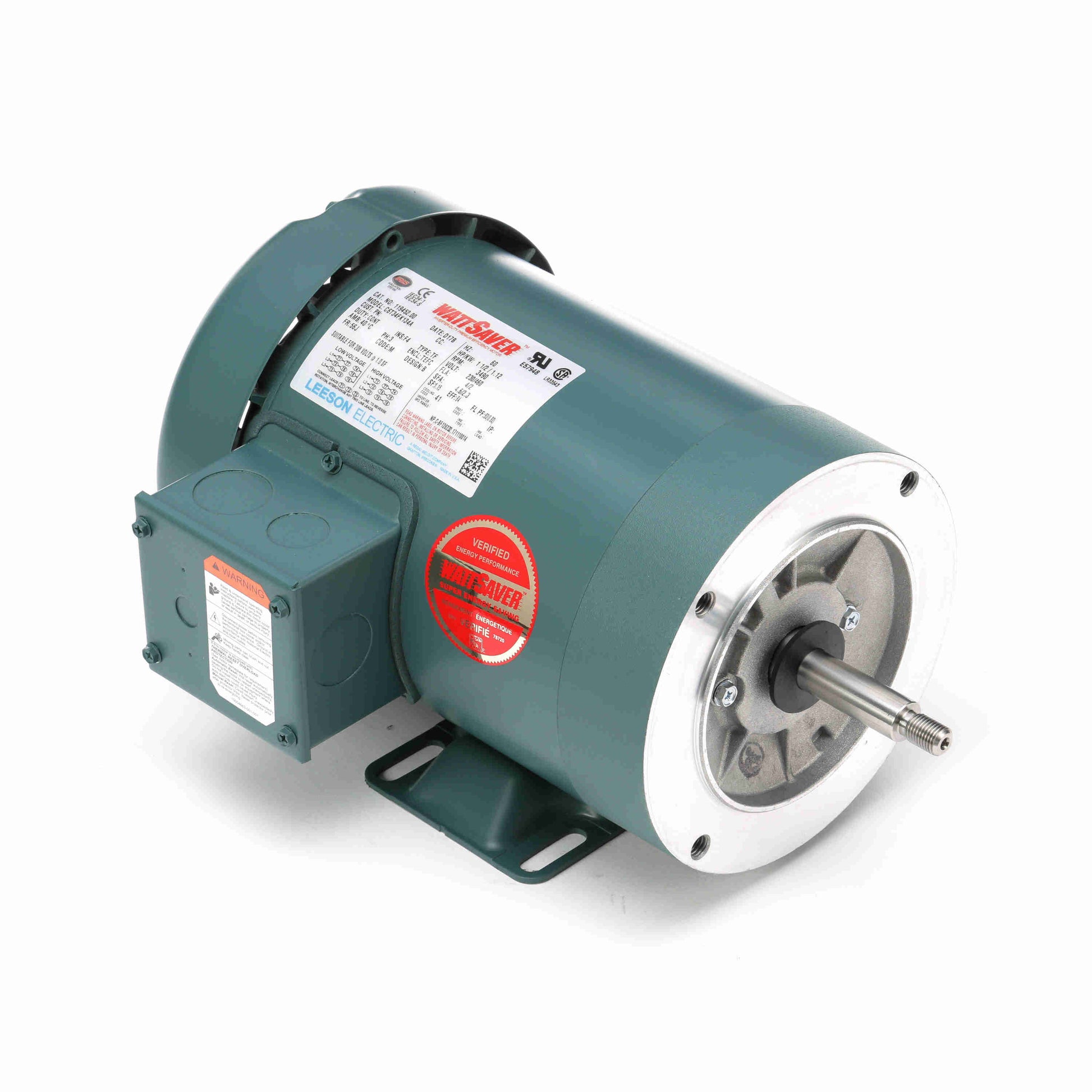

Leeson Electric 119454.00, 2 HP, 3500 RPM, 56J FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, Jet Pump Motor.

119454.00, 2 HP, 3500 RPM, 56J FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, Jet Pump Motor.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:5.2-4.8/2.4 A
Speed:3490 rpm
Service Factor:1.15
Phase:3
Efficiency:85.5 %
Power Factor:88
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:56J
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:6.4 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:J
Overall Length:13.66 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.44 in
Assembly/Box Mounting:F1 ONLY
