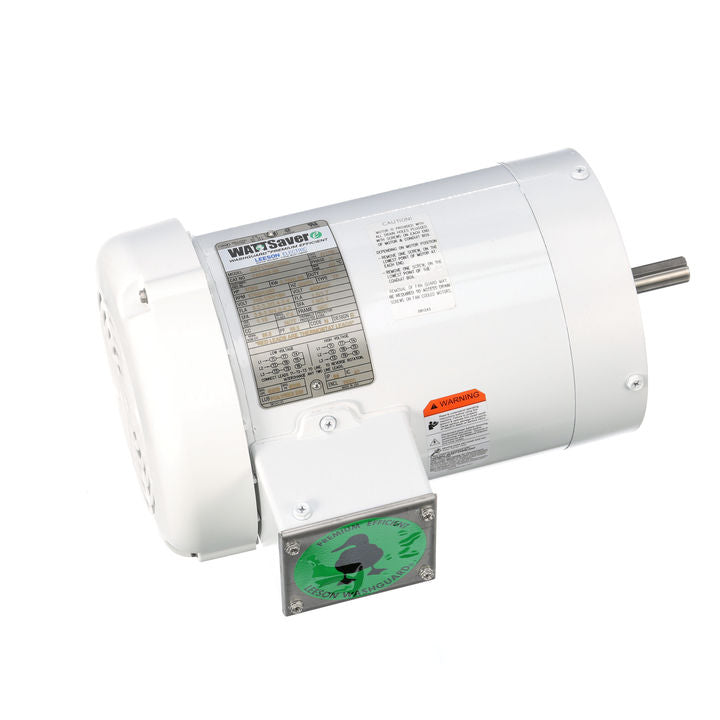

Leeson Electric 119462.00, 3 HP, 3500 RPM, 56C FR, 208-230/460 Vac, 3 PH, TEFC, Jet Pump Motor.

119462.00, 3 HP, 3500 RPM, 56J FR, 208-230/460 Vac, 3 PH, TEFC, Jet Pump Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:8.8-8.0/4.0 A
Speed:3490 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:N
Frame:56J
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:3.83 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:J
Overall Length:14.37 in
Frame Length:8.00 in
Shaft Diameter:0.625 in
Shaft Extension:2.56 in
Assembly/Box Mounting:F1 Only
