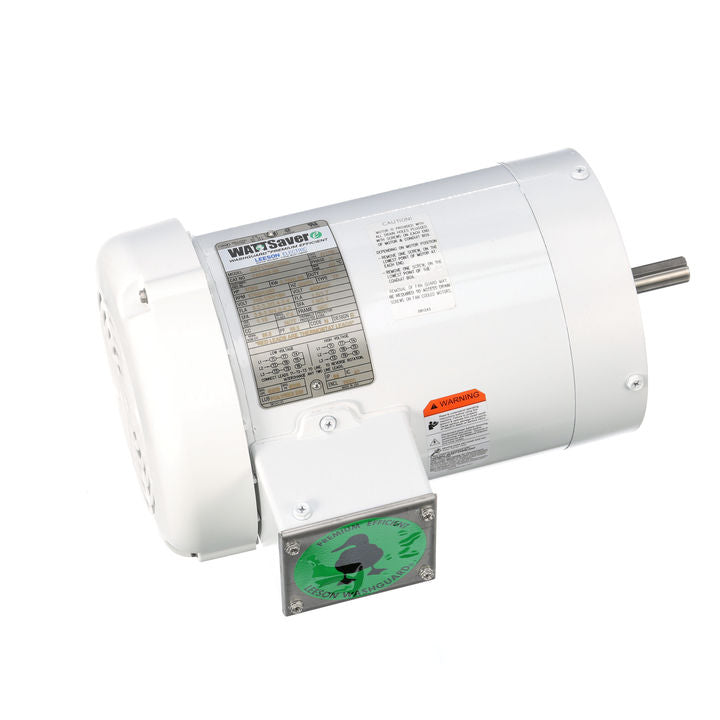

Leeson Electric 119468.00, 1 HP, 1800 RPM, 56C FR, 208-230/460 Vac, 3 PH, TENV & TEFC, C Face Less Base, Washguard

119468.00, 1 HP, 1800 RPM, 56C FR, 208-230/460 Vac, 3 PH, TENV & TEFC, C Face Less Base, Washguard.

Engineering Data

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 3.2-3.2 F.L. Amps 1.6 F.L. Amps 3.4-3.4/1.7
S. F Amps 3.8-3.8 S. F Amps 1.9 S. F Amps 4.2-4.2/2.1

--------------------------------------------------------------------------------

RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75% PF 75
UL Y-(Leeson UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 35 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081341 Mounting ROUND Rotation REV
Assembly 042507 Shaft Dia. 5/8 IN Ext. Diag. 005010.02
Cust Part No Outline 607-0006-700 Ext. Diag2
Packaging B Outline Dash No Winding T634342
Carton Label Leeson Washguard GROUP: 3
Iris Paint WHITE - LEESON (EPOXY) Test Card 03

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C

Performance
Torque UOM LB-FT Inertia (WK²) .108 LB-FT^2
Torque 1.7(Full Load) 15.8(Break Down) 11.9(Pull Up) 12(Locked Rotor)
CURRENT (amps) 1.7(Full Load) 9.86(Break Down) 13.02(Pull Up) 14(Locked Rotor)
Efficiency (%) 0(Full Load) 85.4(75% Load) 796(50% Load) 72.5(25% Load)
PowerFactor 69.9(Full Load) 61.5(75% Load) 51.5(50% Load) 32.4(25% Load)

Load Curve Data @60 Hz, 460 Volts, 1 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 1.0 0.064 1798 0.0 0.0 8.0 0.0 -
0.25 1.02 0.263 1789 0.75 72.5 32.4 0.0
0.5 1.16 0.476 1779 1.5 79.6 51.5 0.0 -
0.75 1.35 0.662 1769 2.25 85.4 61.5 0.0
1.0 1.55 0.876 1757 3.0 85.5 70.9 38.0 22.0
1.25 1.77 1.098 1745 3.75 4.7 77.9 60.0
1.5 2.03 1.316 1733 4.5 84.2 81.4 0.0
1.15 1.7 1.0 1750 3.45 85.0 75.0 0.0
