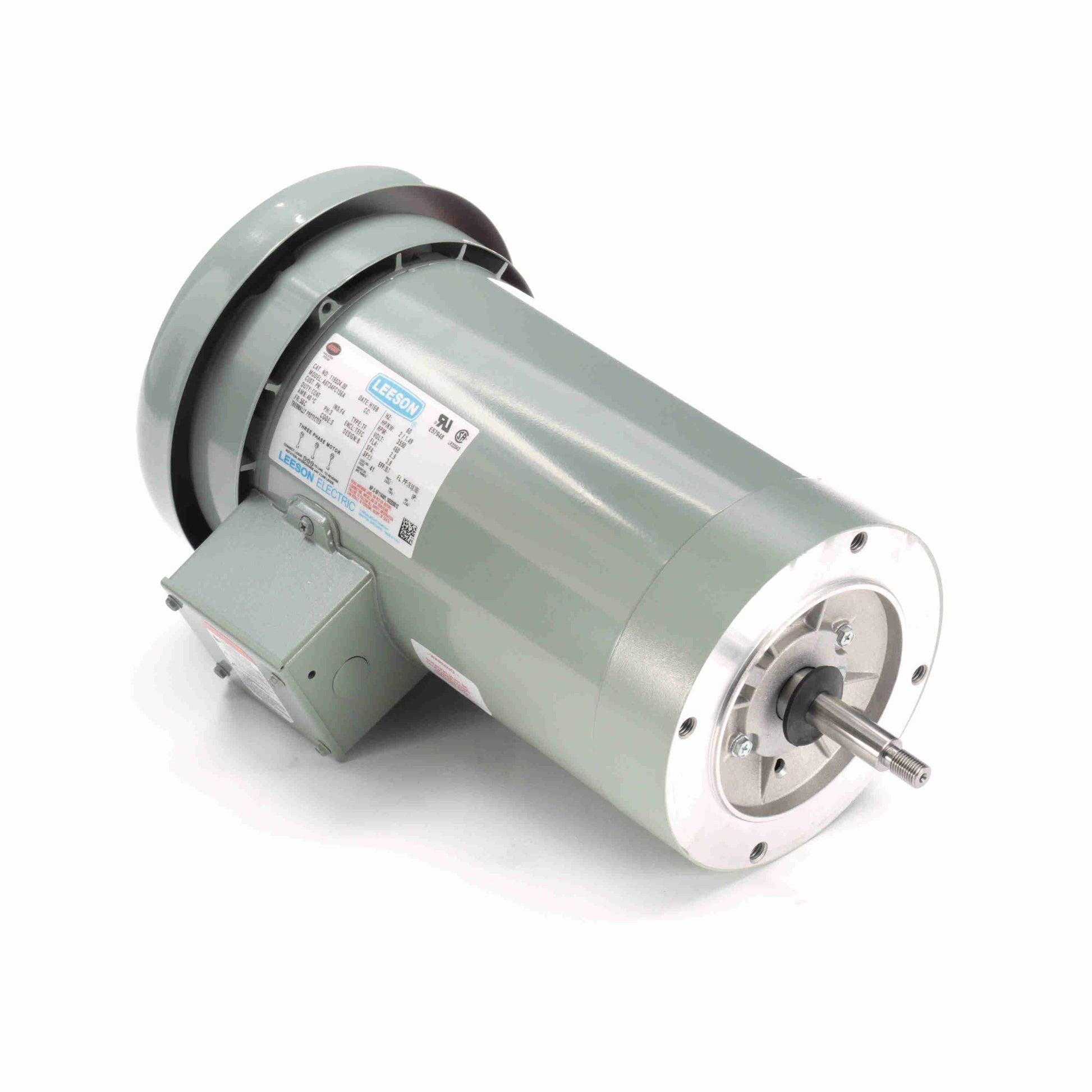

Leeson Electric 119534.00, 2 HP, 3600 RPM, 56C FR, 460 Vac, 3 PH, Rigid Base, TEFC, Catfish Pond Motor.

119534.00, 2 HP, 3600 RPM, 56C FR, 460 Vac, 3 PH, Rigid Base, TEFC, Catfish Pond Motor.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:460 V
Current:2.9 A
Speed:3550 rpm
Service Factor:1.5
Phase:3
Efficiency:85.7 %
Power Factor:76.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:S
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:3.83 Ohms
Mounting:Rigid base
Motor Orientation:Shaft Down
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:15.93 in
Frame Length:8.75 in
Shaft Diameter:0.625 in
Shaft Extension:2.56 in
Assembly/Box Mounting:F1 Only
