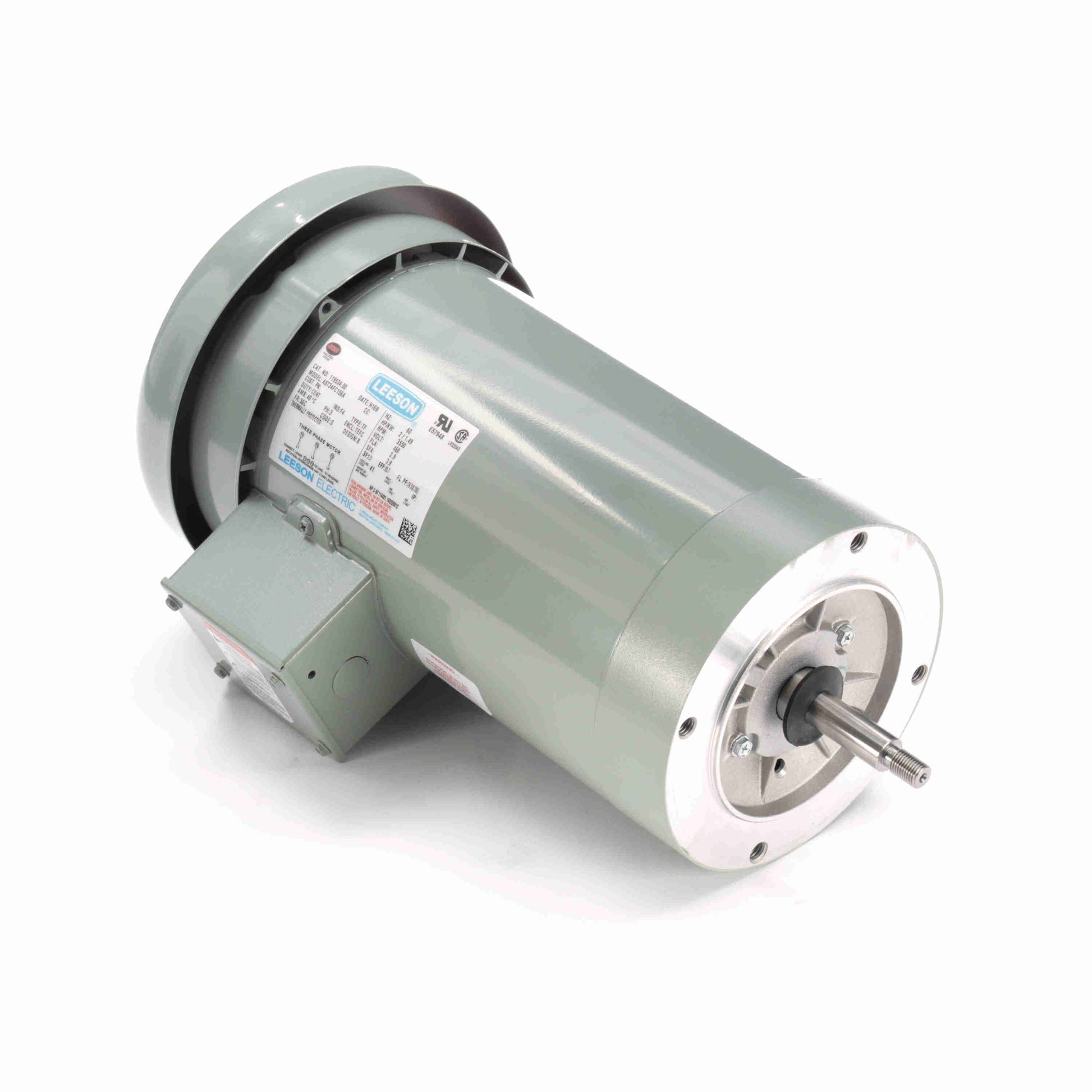

Leeson Electric 119535.00, 1 HP, 1800 RPM, 56C FR, 460 Vac, 3 PH, TEFC, Catfish Pond Motor.

Leeson Electric 119535.00, 1 HP, 1800 RPM, 56C FR, 460 Vac, 3 PH, TEFC, Catfish Pond Motor.

$1,127.00
$1,127.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,127.00 $608.58
Sale

119535.00, 1 HP, 1800 RPM, 56C FR, 460 Vac, 3 PH, TEFC, Catfish Pond Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:460 V
Current:1.6 A
Speed:1725 rpm
Service Factor:1.25
Phase:3
Efficiency:85.5 %
Power Factor:71
Duty:Continuous
Insulation Class:B
Design Code:D
KVA Code:N
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:14.08 in
Frame Length:7.75 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 Only
