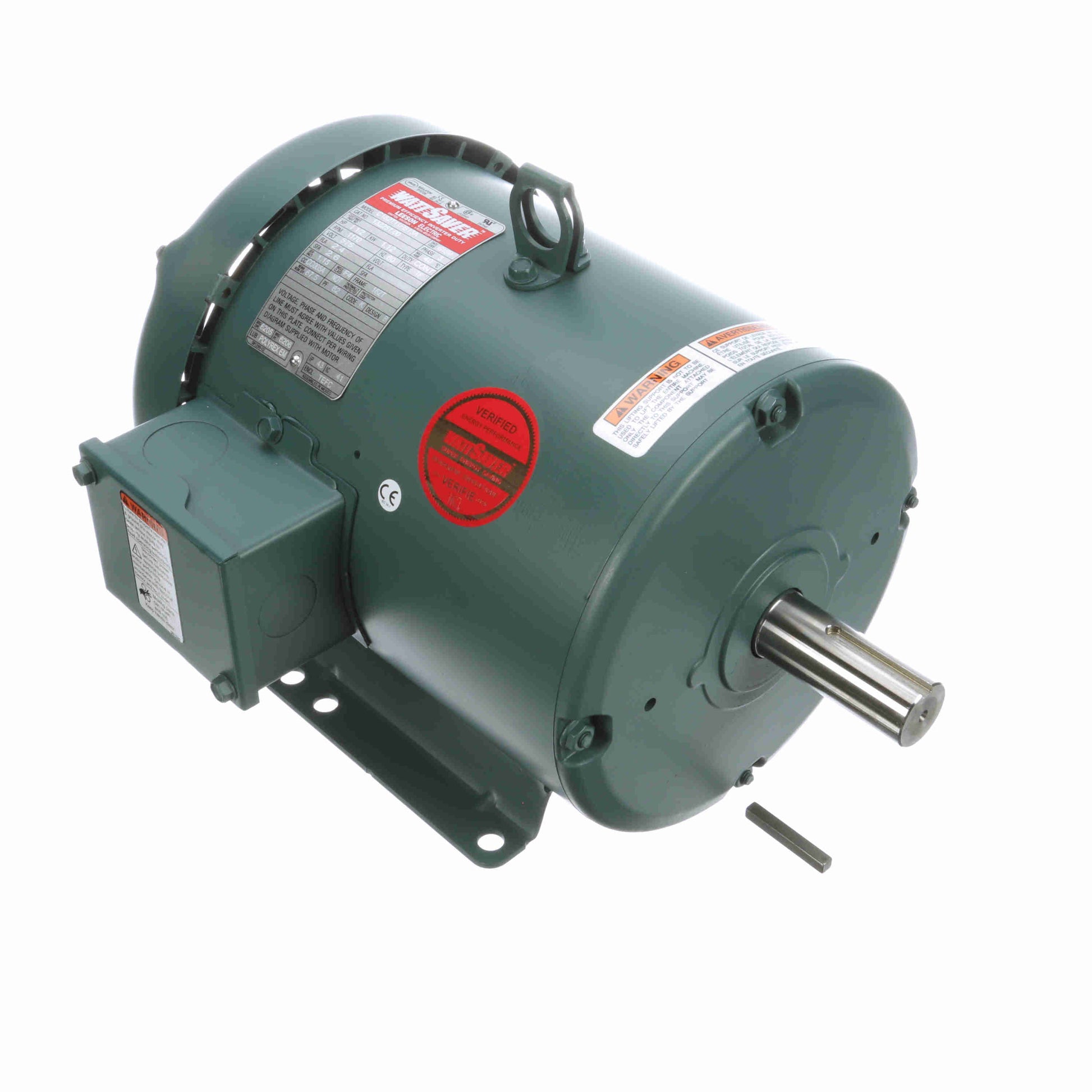

Leeson Electric 119552.00, 1 HP, 1800 Rpm, 56HC FR, 200/208 Vac, 3 PH, TEFC, Rigid Base, Unit Handling Motor.

119552.00, 1 HP, 1800 Rpm, 56 FR, 200/208 Vac, 3 PH, TEFC, Rigid Base, Unit Handling Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:200-208 V
Current:3.2-3.2 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:85.5 %
Power Factor:77.8
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:L
Frame:56
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.23 in
Frame Length:6.75 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
