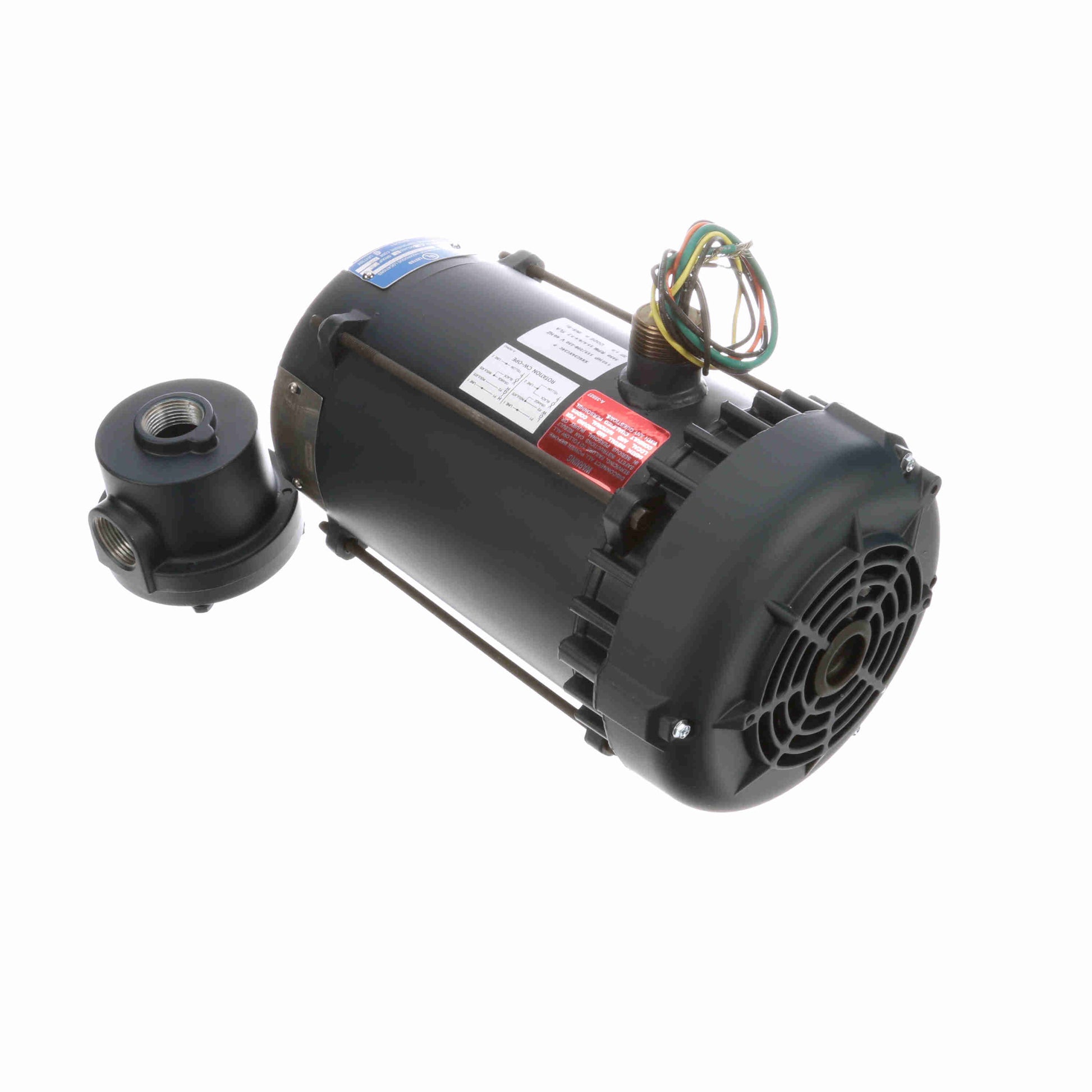

Leeson Electric 119736.00, 3/4 HP, 1200 RPM, 56 FR, 230/460 Vac, 3 PH, EPFC, Explosion Proof Motor.

119736.00, 3/4 HP, 1200 RPM, 56 FR, 230/460 Vac, 3 PH, EPFC, Explosion Proof Motor.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:230/460 V
Current:3.2/1.6 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:74 %
Power Factor:59.1
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:K
Frame:56
Enclosure:Explosion Proof Fan cooled
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:N
IP Code:54
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:6.3 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.94 in
Frame Length:6.81 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
