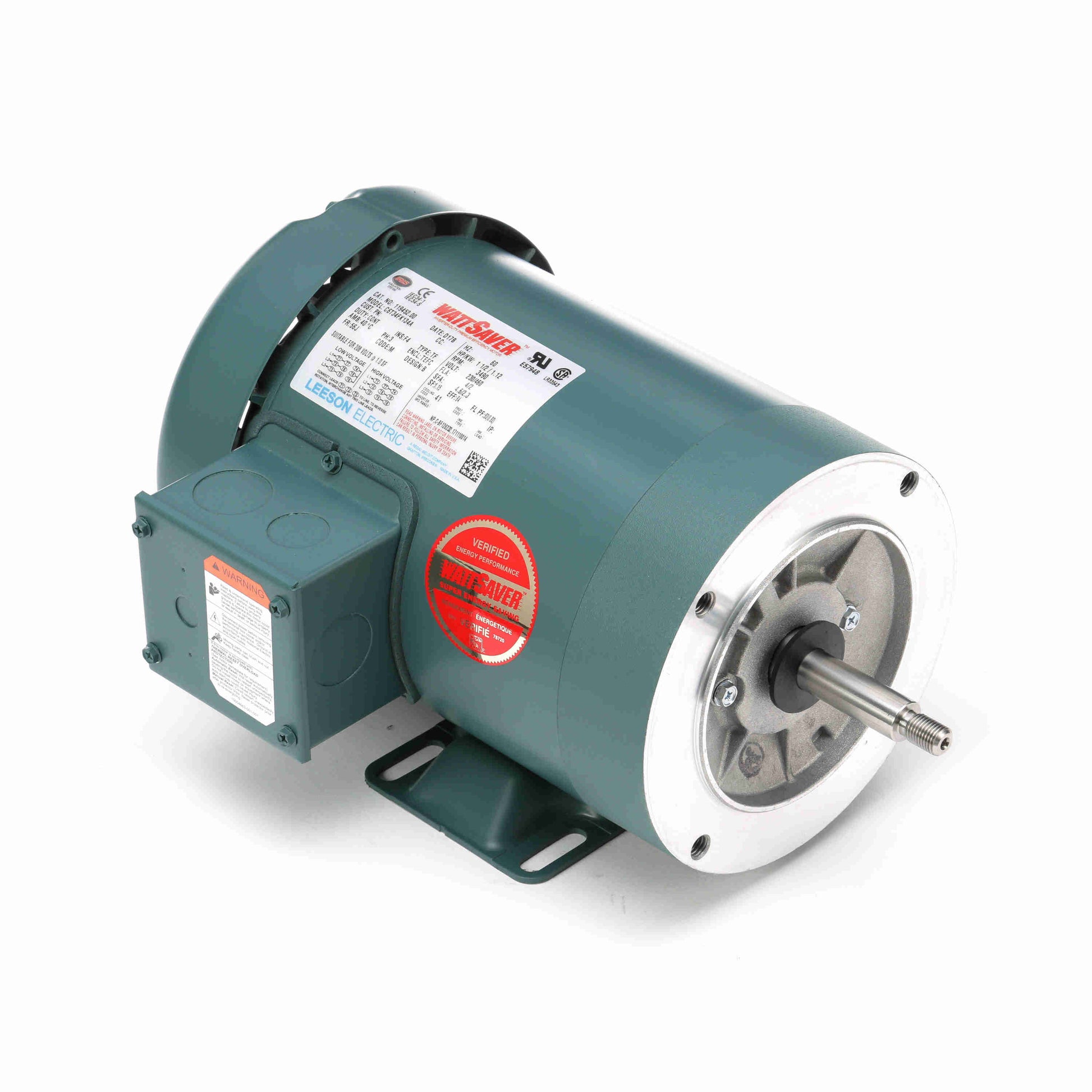

Leeson Electric 119796.00, 1 1/2 HP, 1200 RPM, 56C FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Variable Speed Motor.

119796.00, 1 1/2 HP, 1200 RPM, 56C FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Variable Speed Motor.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:5.7/2.9 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:77 %
Power Factor:64
Duty:Continuous
Insulation Class:H
Design Code:INV
KVA Code:J
Frame:56HC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:6
Rotation:Reversible
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.98 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 Only
