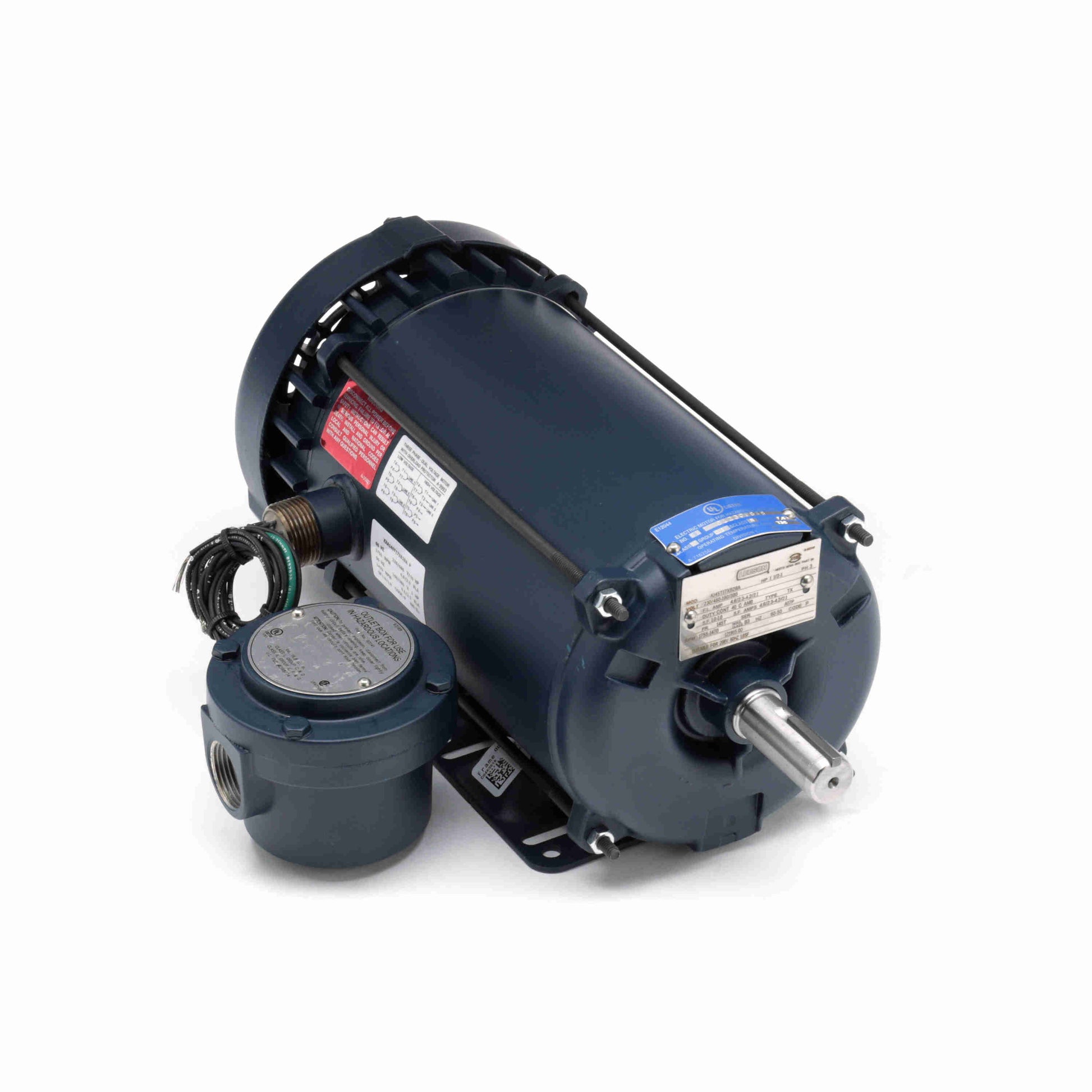

Leeson Electric 119957.00, 1 HP, 1800 RPM, 56C FR, 230/460 Vac, 3 PH, EPNV, Rigid Base.

119957.00, 1 HP, 1800 RPM, 56C FR, 230/460 Vac, 3 PH, EPNV, Rigid Base.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:3.0/1.5 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:85.5 %
Power Factor:72
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:M
Frame:56C
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:Thermostats (N/C)
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:N
IP Code:56
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:13.8 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Cast Iron
Shaft Type:NEMA 56
Overall Length:13.36 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.87 in
Assembly/Box Mounting:F1 Only
