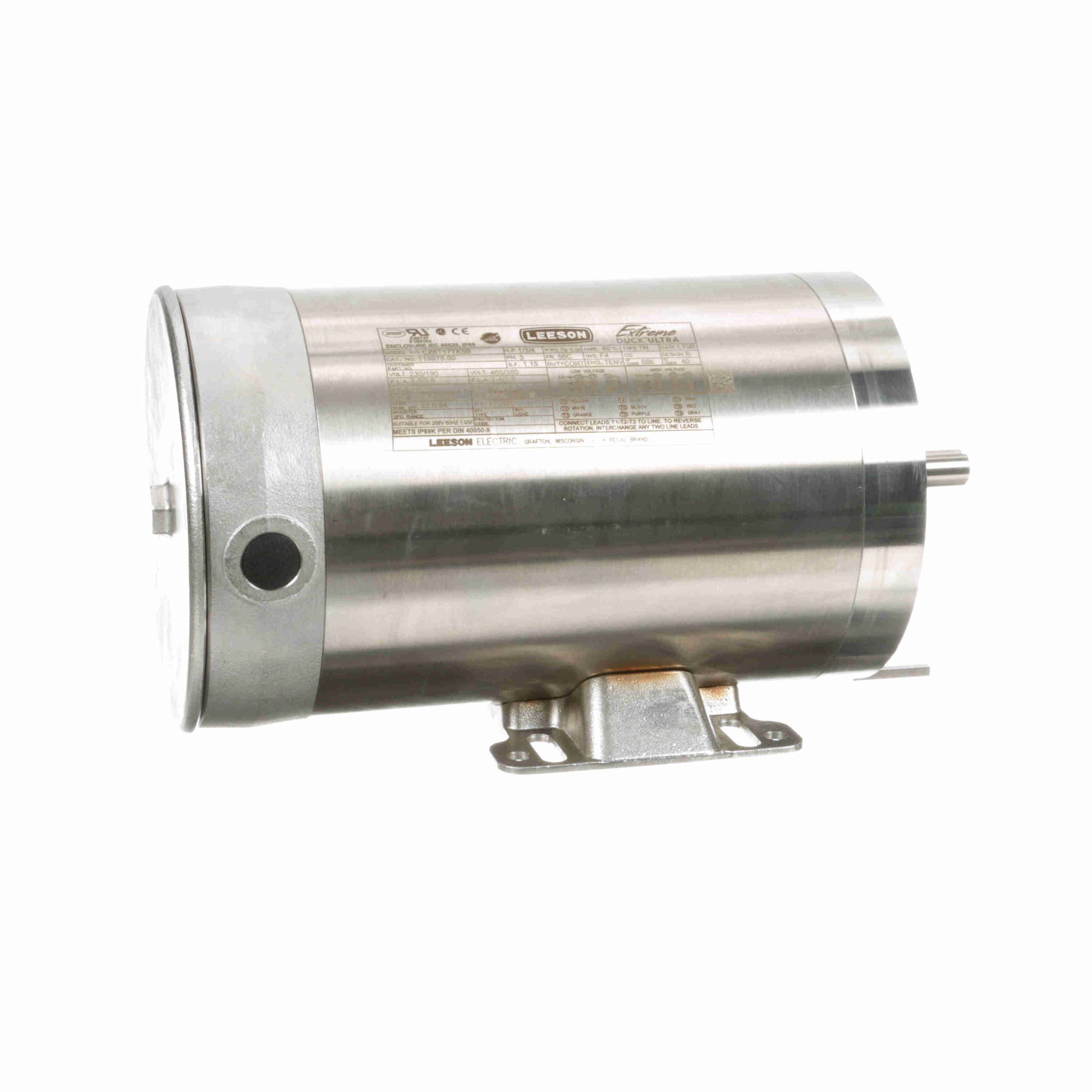

Leeson Electric 119973.00, 1 HP, 1800 RPM, 56HC FR, 230/460 Vac, 3 PH, TENV, Wasdown Motor.

119973.00, 1 HP, 1800 RPM, 56HC FR, 230/460 Vac, 3 PH, TENV, Wasdown Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:2.8/1.4 A
Speed:1750 rpm
Service Factor:1.15
Phase:3
Efficiency:85.5 %
Power Factor:77.7
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:N
Frame:56HC
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:NEMA 56
Overall Length:13.70 in
Frame Length:9.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
