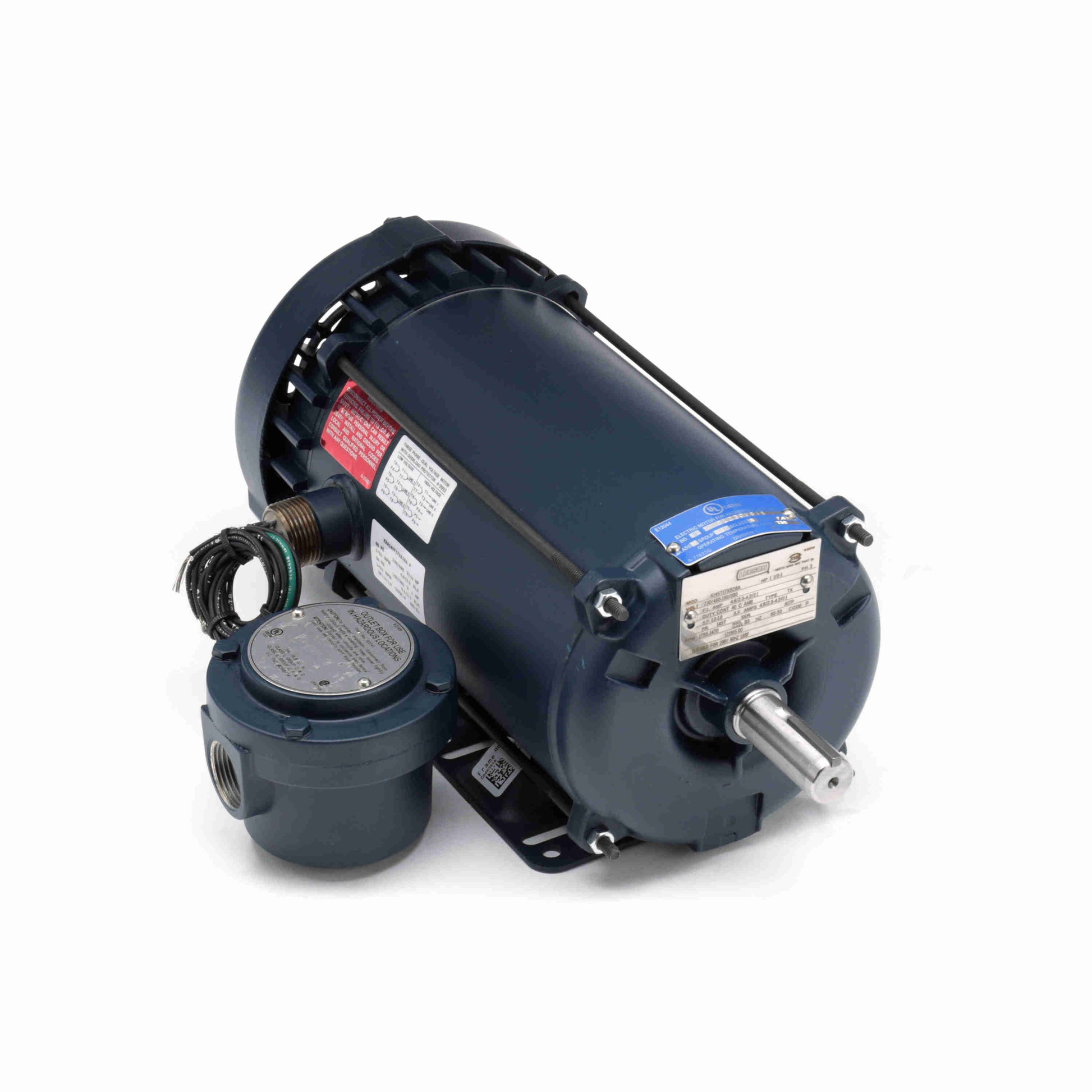

Leeson Electric 121914.00, 1 1/2 HP, 3600 RPM, 143T FR, 230/460 Vac, 3 PH, Rigid Base, Explosion Proof.

121914.00, 1 1/2 HP, 3600 RPM, 143T FR, 230/460 Vac, 3 PH, Rigid Base, Explosion Proof.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:4.0/2.0 A
Speed:3515 rpm
Service Factor:1
Phase:3
Efficiency:84 %
Power Factor:83.5
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:M
Frame:143T
Enclosure:Explosion Proof Fan cooled
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:205
Opp Drive End Bearing Size:203
UL:UL Listed And CSA Certified
CSA:Y
CE:NIP Code:54
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3C
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:9.27 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:15.00 in
Frame Length:7.81 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 ONLY
