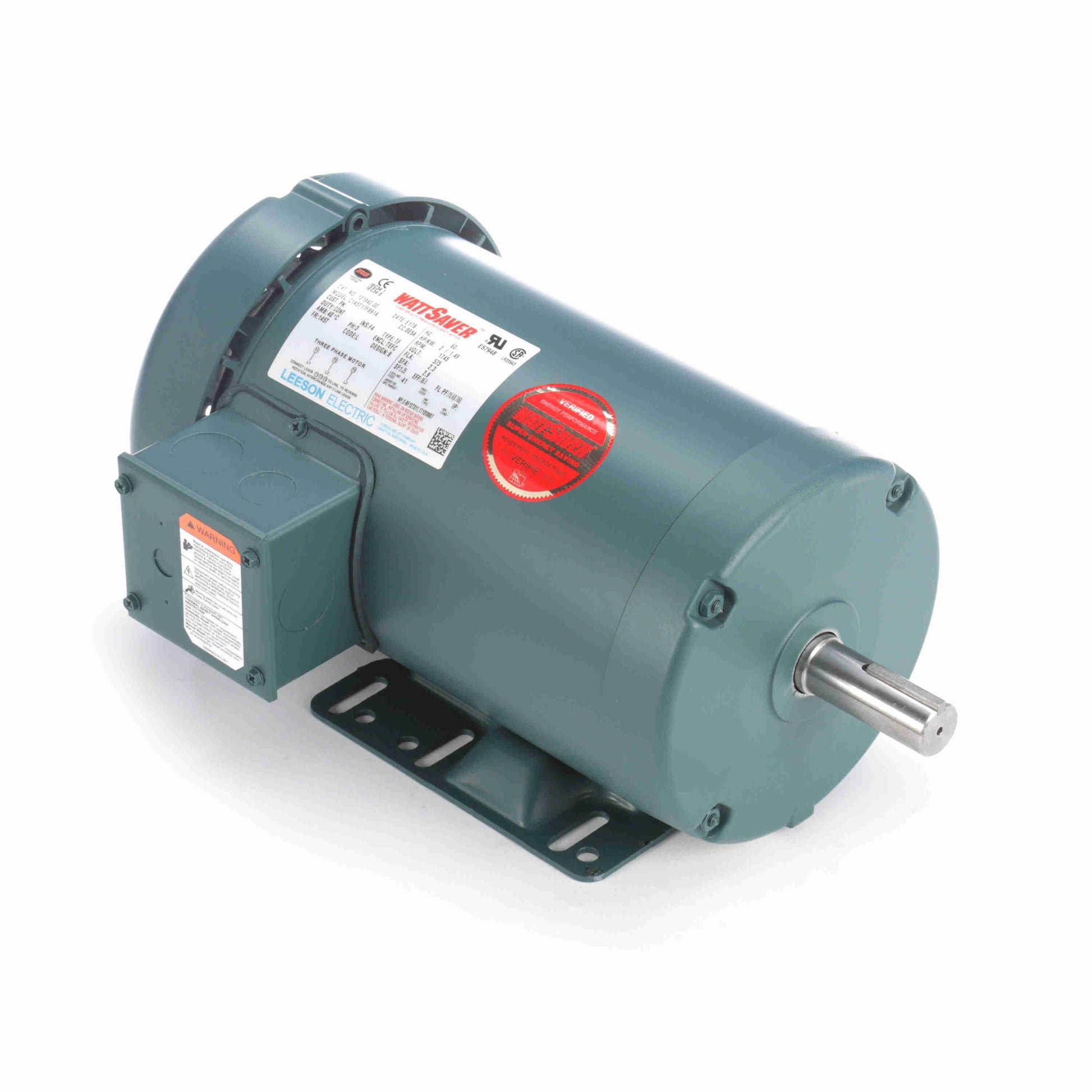

Leeson Electric 121940.00, 1 1/2 HP, 1800 RPM, 145T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

121940.00, 1 1/2 HP, 1800 RPM, 145T FR, 575 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:575 V
Current:1.9 A
Speed:1750 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:67.7
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.43 in
Frame Length:7.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 ONLY
