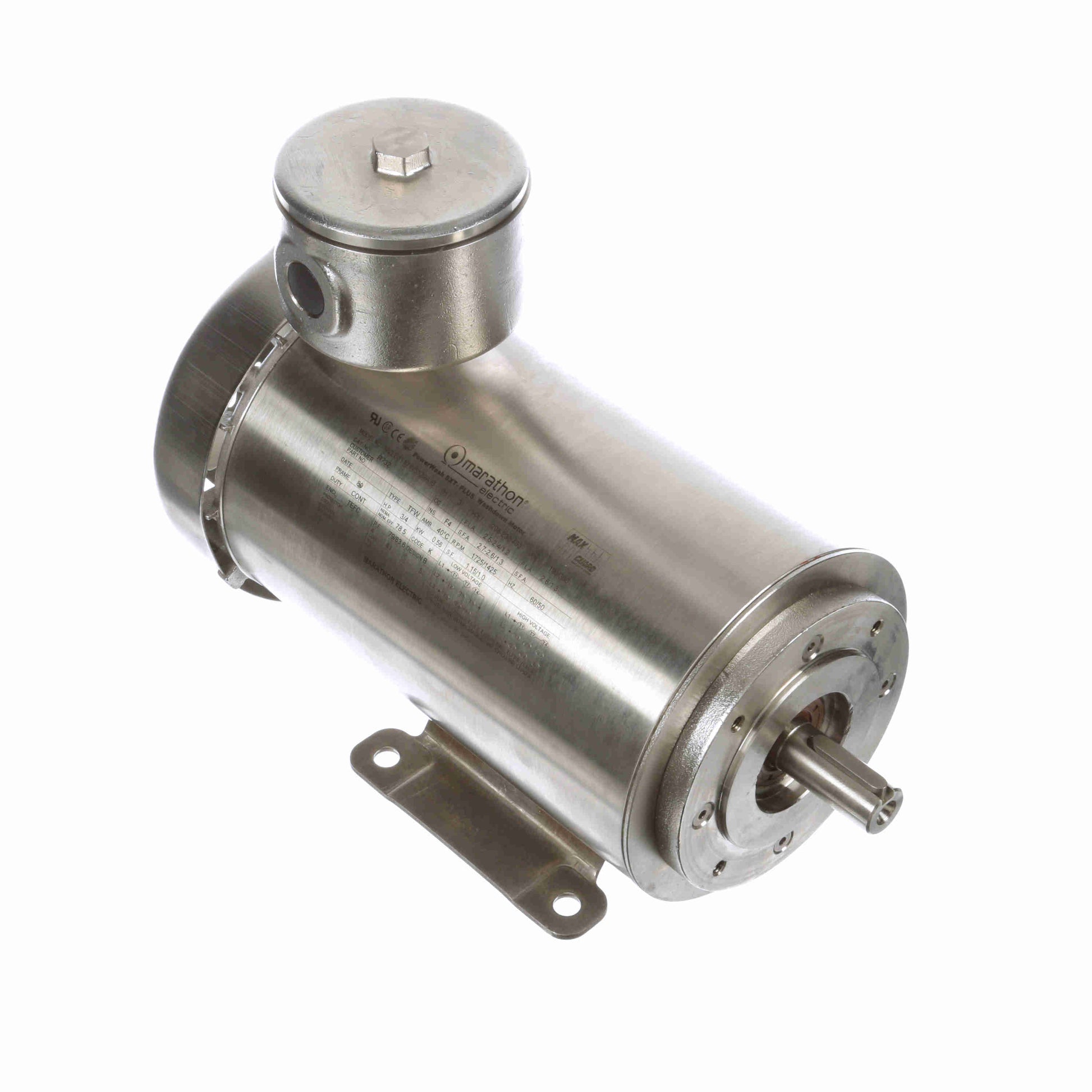

Leeson Electric 122009.00, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, Feather Picker Motor.

122009.00, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, DP, Rigid Base, Feather Picker Motor.

Engineering data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:5.8/2.9 A
Speed:1745 rpm
Service Factor:1.25
Phase:3
Efficiency:86.5 %
Power Factor:75.6
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:6 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.25 in
Frame Length:8.25 in
Shaft Diameter:0.875 in
Shaft Extension:2.12 in
Assembly/Box Mounting:F3
