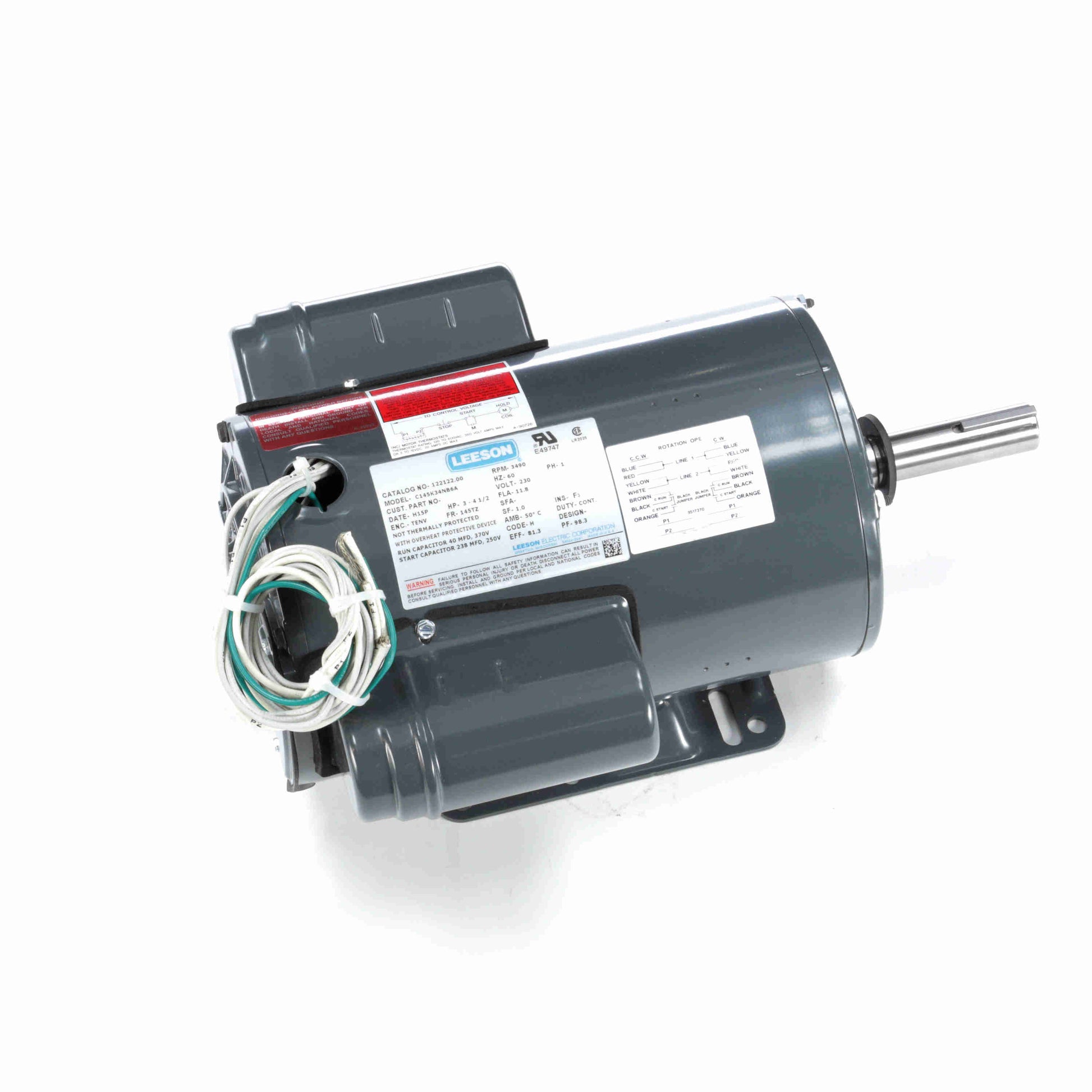

Leeson Electric 122122.00, 3 HP, 3600 RPM, 145TZ FR, 230 Vac, 1 PH, TENV, Rigid Base, Crop Dryer Motor.

122122.00, 3 HP, 3600 RPM, 145TZ FR, 230 Vac, 1 PH, TENV, Rigid Base, Crop Dryer Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60/60 Hz
Voltage:230 V
Current:11.8 A
Speed:3490 rpm
Service Factor:1
Phase:1
Efficiency:81.3 %
Power Factor:98.3
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:H
Frame:145TZ
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:14.46 in
Frame Length:9.56 in
Shaft Diameter:0.875 in
Shaft Extension:3.25 in
Assembly/Box Mounting:F1 ONLY
