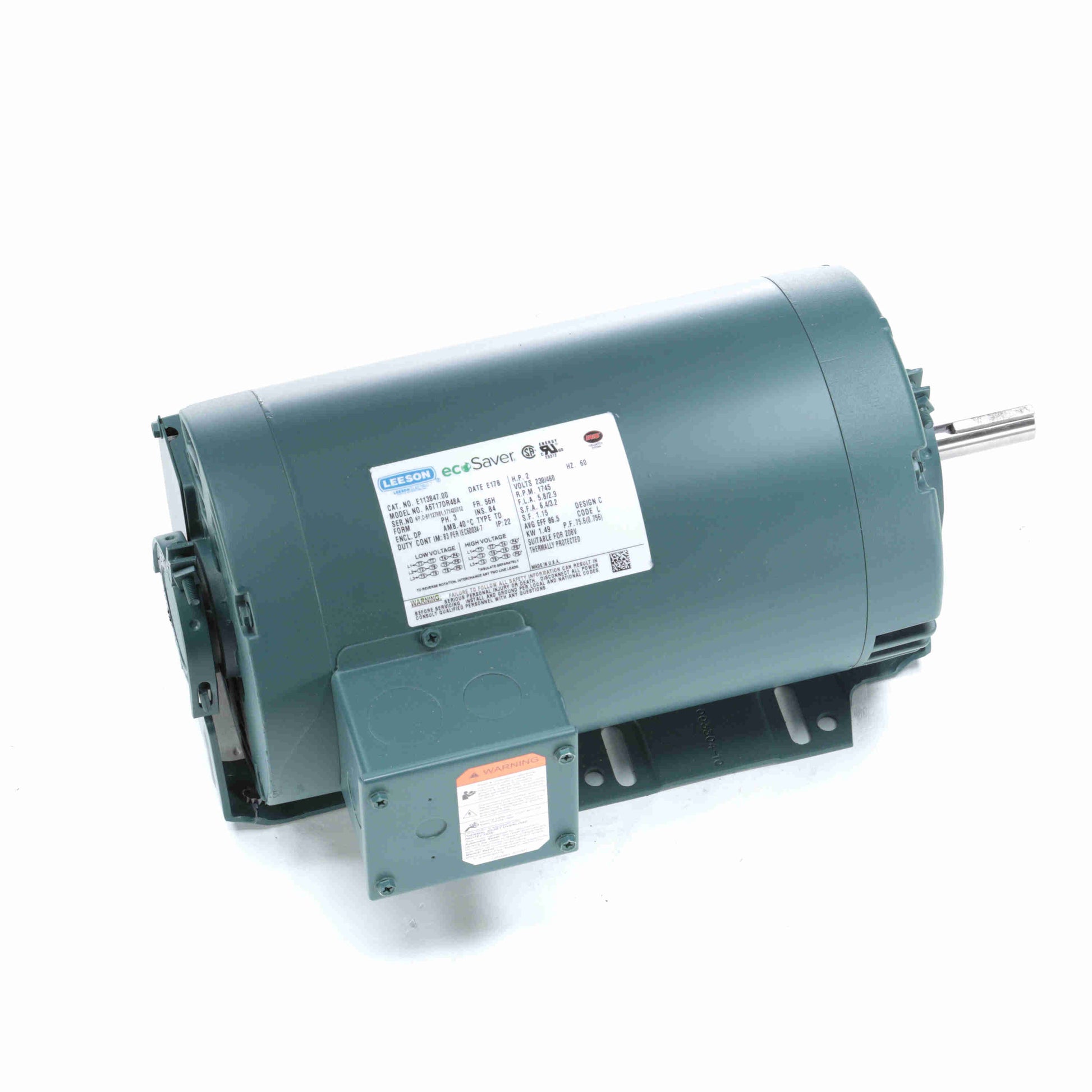

Leeson Electric 122130.00, 1 HP, 1200 RPM, 145TC FR, 230/460 Vac, 3 PH, TENV, Variable Speed Motor.

122130.00, 1 HP, 1200 RPM, 145TC FR, 230/460 Vac, 3 PH, TENV, Variable Speed Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:230/460 V
Current:3.8/1.9 A
Speed:1145 rpm
Service Factor:1
Phase:3
Efficiency:80 %
Power Factor:62.5
Duty:Continuous
Insulation Class:F
Design Code:INV
KVA Code:K
Frame:145TC
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:6
Rotation:Reversible
Resistance Main:16.2 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:16.04 in
Frame Length:9.56 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 Only
