Industrial Motors

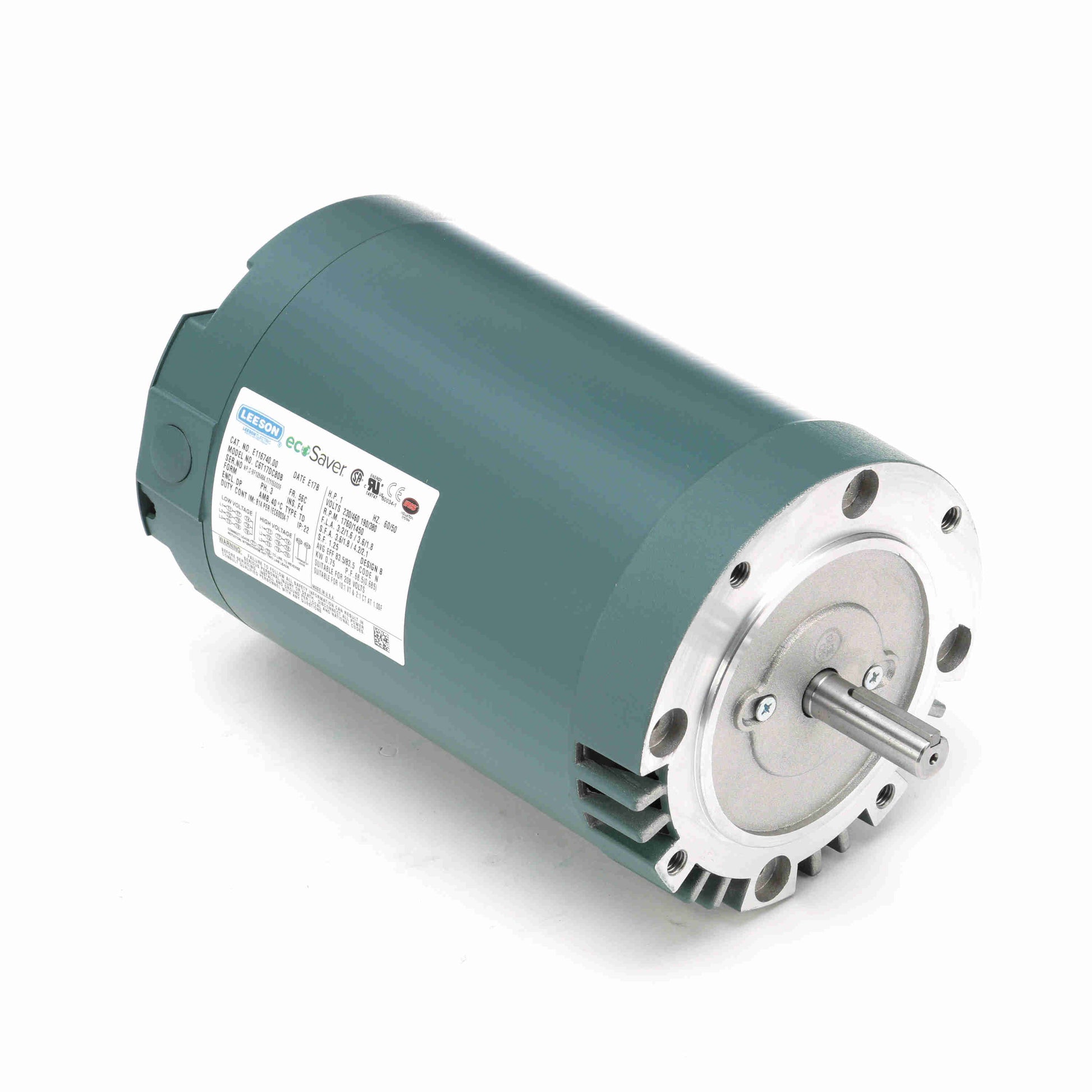

Leeson Electric 122162.00, 1 HP, 1800 RPM, 145TC FR, 208-230/460 Vac, 3 PH, DP, General Purpose Motor.

Leeson Electric 122162.00, 1 HP, 1800 RPM, 145TC FR, 208-230/460 Vac, 3 PH, DP, General Purpose Motor.

$935.00
$935.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$935.00 $504.90
Sale

122162.00, 1 HP, 1800 RPM, 145TC FR, 208-230/460 Vac, 3 PH, DP, General Purpose Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:3.9-3.8/1.9 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:82.5 %
Power Factor:60
Duty:Continuous
Insulation Class:F
Design Code:C
KVA Code:K
Frame:145TC
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:1.63 Ohms
Mounting:Round
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.19 in
Frame Length:8.00 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 ONLY
