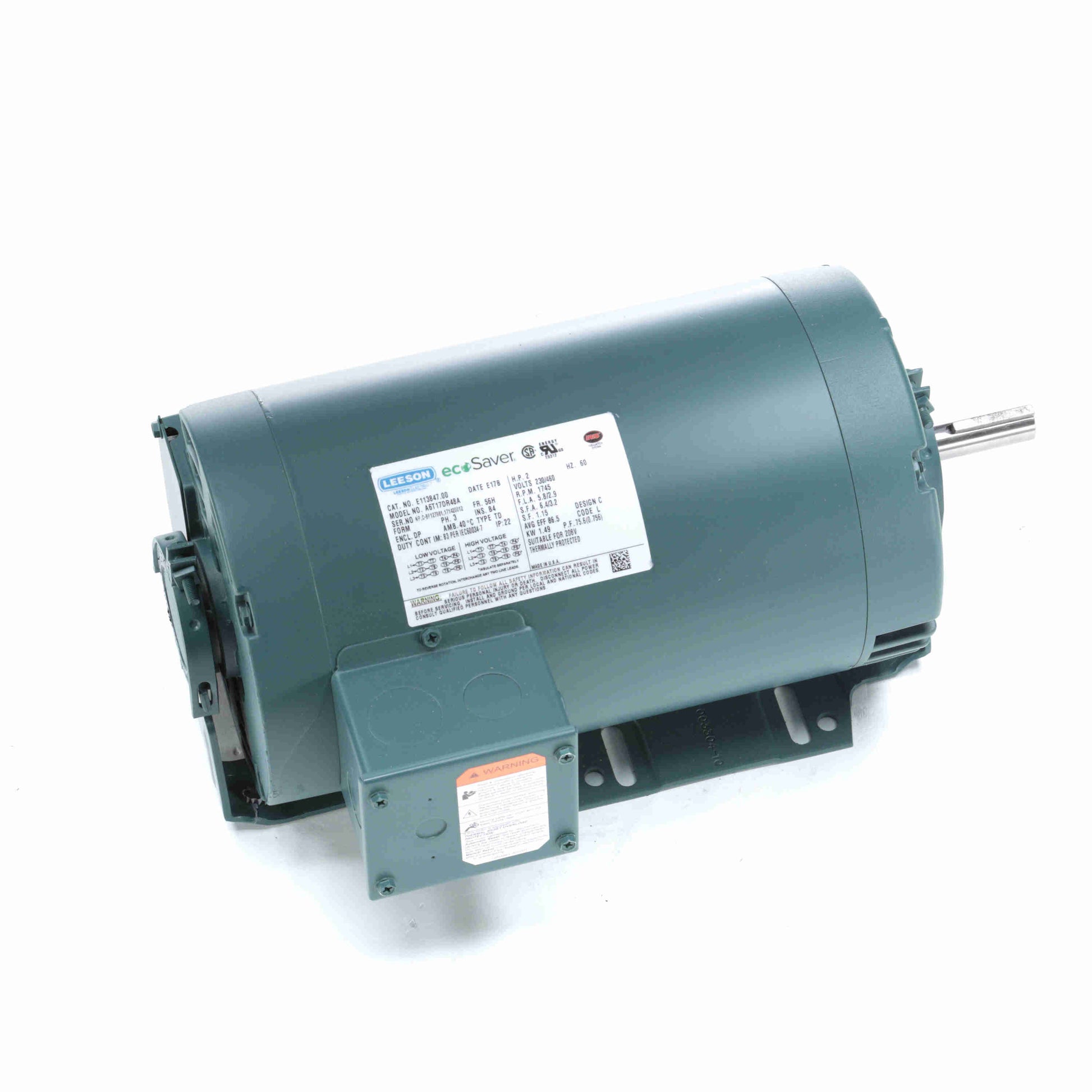

Leeson Electric 122233.00, 2 HP, 1800 RPM, 145T FR, 200-208 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

122233.00, 2 HP, 1800 RPM, 145T FR, 200-208 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:200-208 V
Current:6.6-6.4 A
Speed:1745 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:78.9
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:L
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.93 in
Frame Length:8.00 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 ONLY
