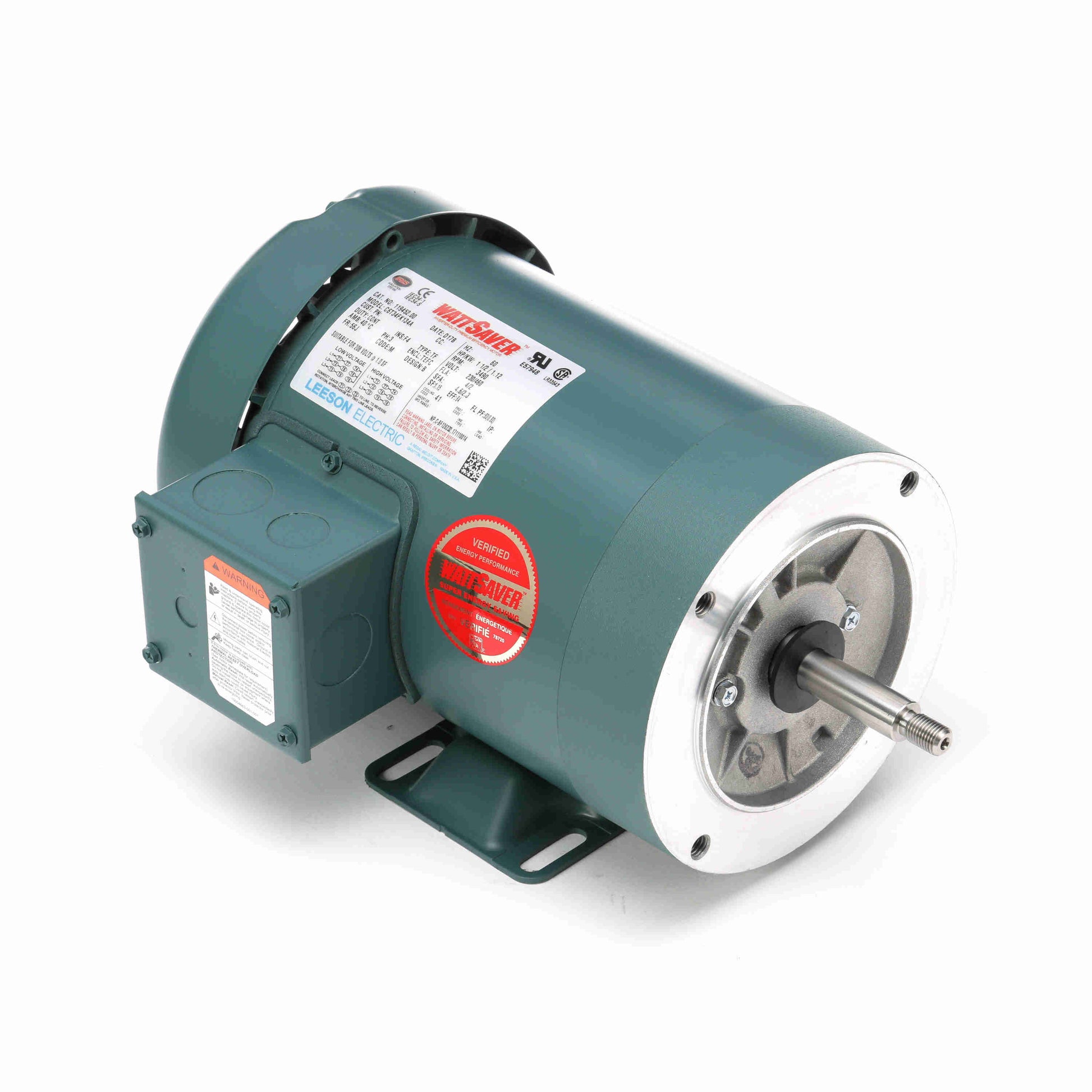

Leeson Electric 122338.00, 3 HP, 1800 RPM, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Variable Speed Motor.

122338.00, 3 HP, 1800 RPM, 145T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Variable Speed Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.6/4.3 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:82.5 %
Power Factor:79
Duty:Continuous
Insulation Class:H
Design Code:INV
KVA Code:J
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.92 in
Frame Length:8.00 in
Shaft Diameter:0.875 in
Shaft Extension:2.13 in
Assembly/Box Mounting:F1 ONLY
