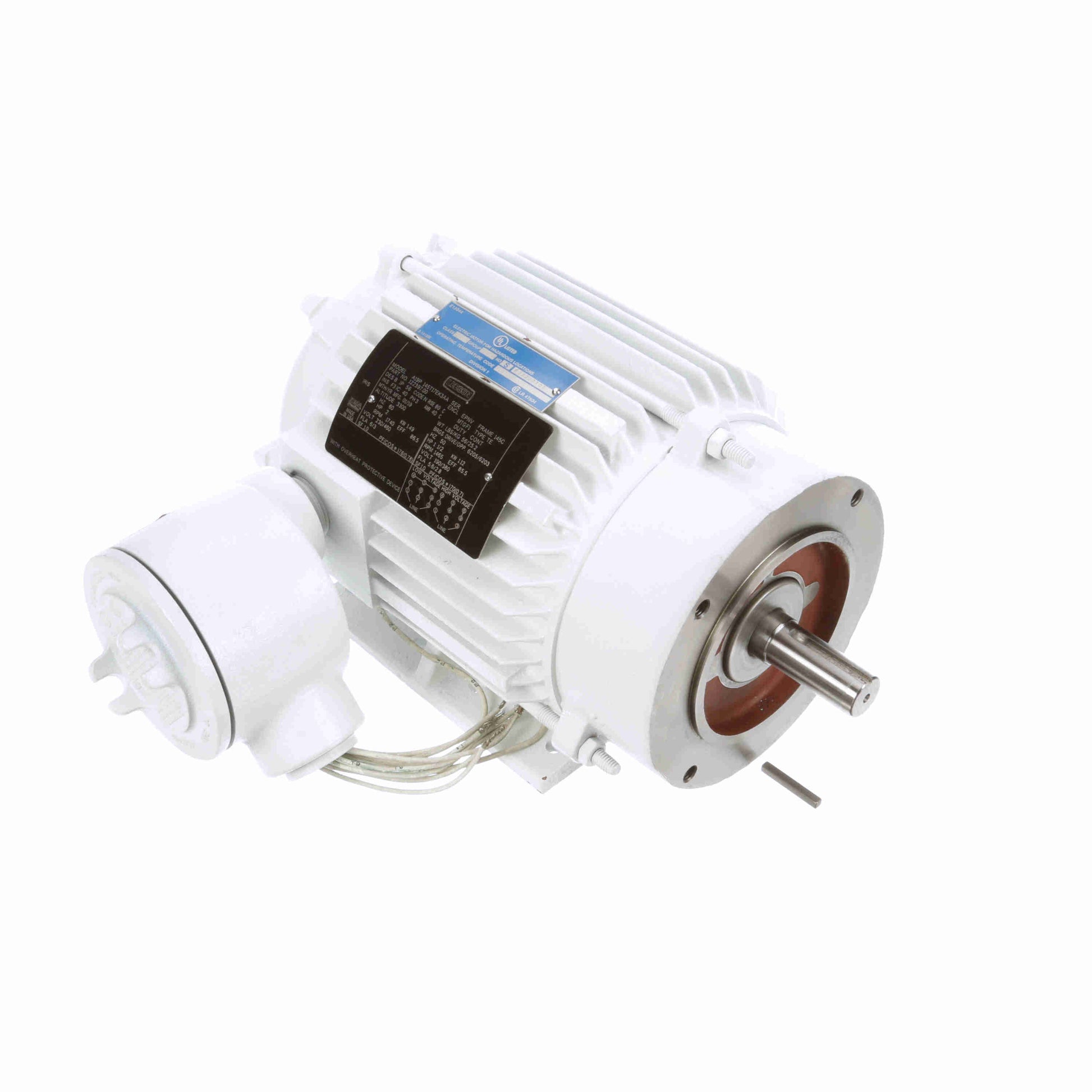

Leeson Electric 122396.00, 1 1/2 HP, 1800 RPM, 143TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless Steel, Washguard Motor.

122396.00, 1 1/2 HP, 1800 RPM, 143TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless Steel, Washguard Motor.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:4.6/2.3 A
Speed:1755 rpm
Service Factor:1
Phase:3
Efficiency:86.5 %
Power Factor:71
Duty:Continuous
Insulation Class:F
Design Code:A
KVA Code:P
Frame:143TC
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:Thermostats (N/C)
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:UL Listed And CSA Certified
CSA:Y
CE:N
IP Code:56
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:7.9 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Cast Iron
Shaft Type:T
Overall Length:15.19 in
Frame Length:7.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.12 in
Assembly/Box Mounting:F1/F2 CAPABLE
