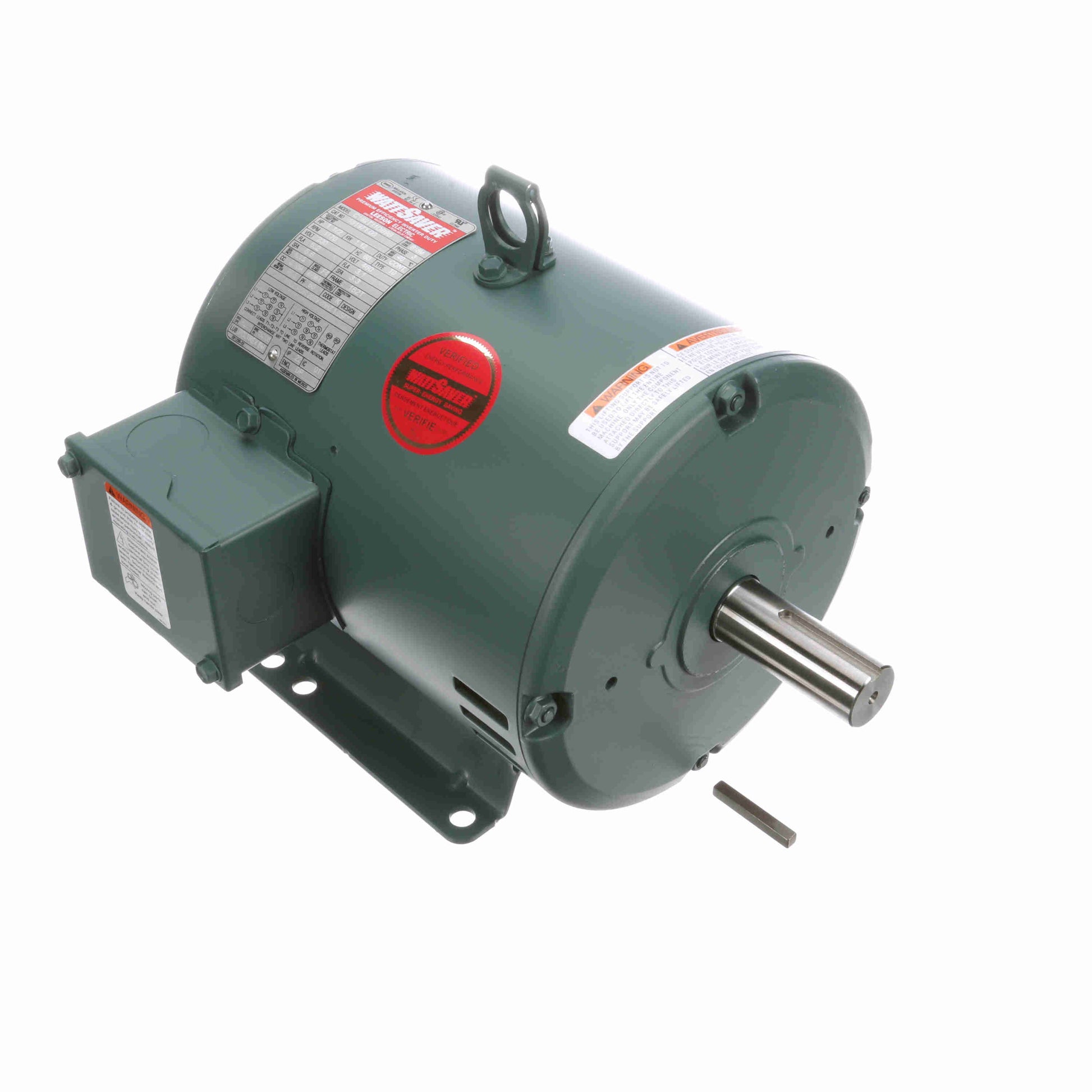

Leeson Electric 131971.00, 1 1/2 HP, 1200 RPM, 182T FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

131971.00, 1 1/2 HP, 1200 RPM, 182T FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:6.2/3.1 A
Speed:1170 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:60
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182T
Enclosure:Drip Proof
Thermal Protection:Automatic
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.19 in
Frame Length:9.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
