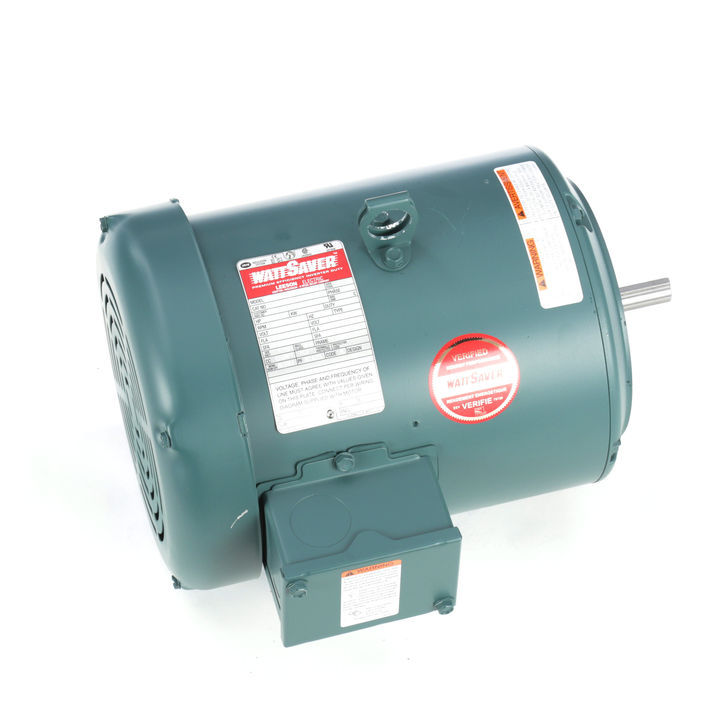

Leeson Electric 132595.00, 3 HP, 1800 RPM, 56C FR, TEFC, 208-230/460 Vac, 3 PH, C Face Less Base, General Purpose

132595.00, 3 HP, 1800 RPM, 56C FR, TEFC, 208-230/460 Vac, 3 PH, C Face Less Base, General Purpose.

Engineering Data

Volts 230 Volts 460 Volts 190/380
FL Amps 7.8 FL Amps 3.9 FL Amps 7/3.5
SF Amps 8.8 SF Amps 4.4 SF Amps 8/4

RPM 1800 Hertz 60/50
HP 3 Duty CONTINUOUS Type TF
KW 2.24 SF 1.15 Phase 3
Frame 56C Design NO DESIGN CODE KVA Code K
Ambient 40 Protection NOT Therm.Prot. 9700K46
Insulation Class F Eff(75%) PF 80.5
Eff(100%) 89.5 CSA Y Bearing OPE 6205
UL C - LE,SP-UL REC INS,CONST.,W OVERHEAT PRT DEVICE CE Y Bearing PE 6206
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 75 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081299 Mounting ROUND Rotation REV
Shaft Diam. Cust Part No. Packaging F
Winding T84174 Carton Label Leeson Wattsaver
Group 3 Iris
Paint GREEN - LEESON WATTSAVER Hazardous Location NONE Test Card 01
