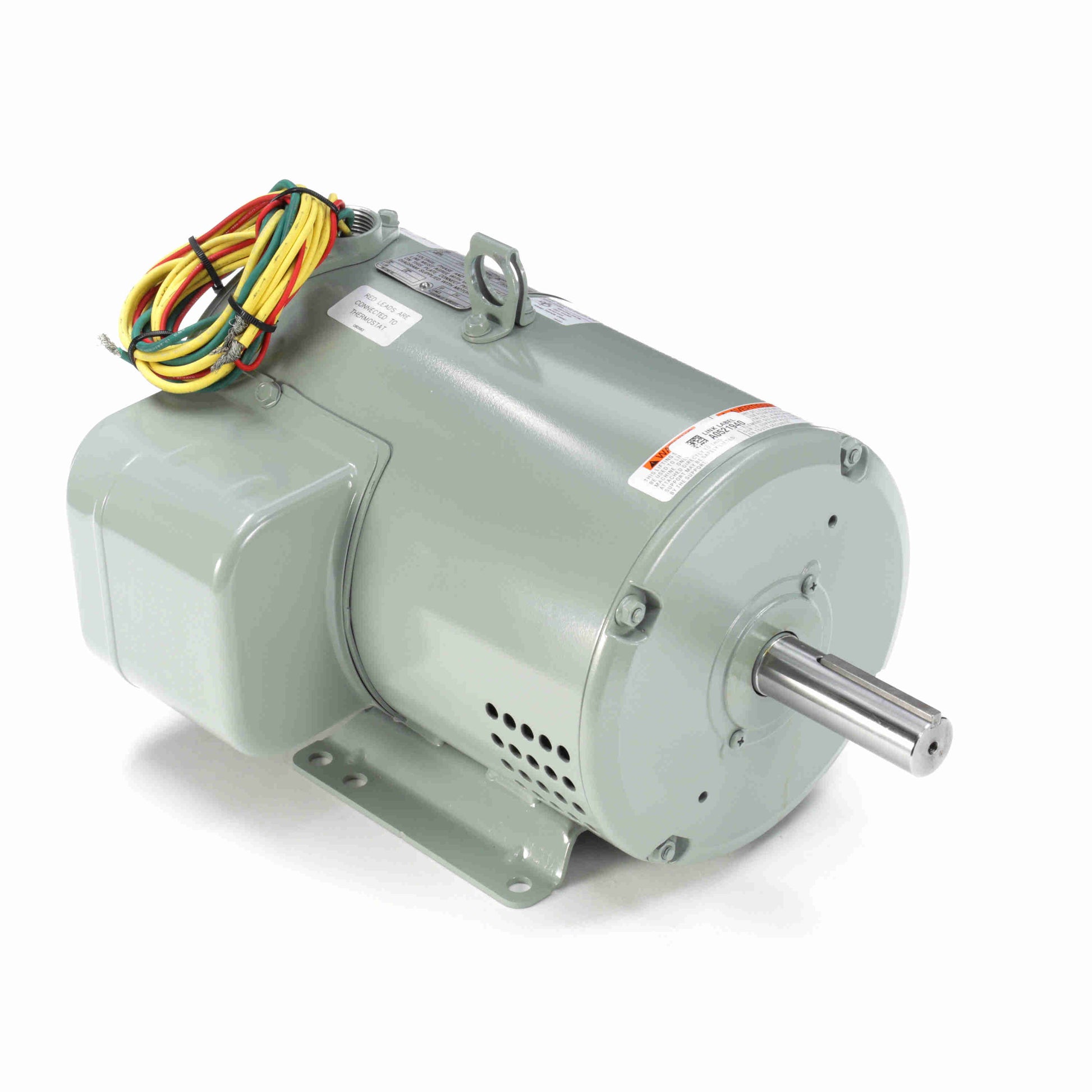

Leeson Electric 132636.00, 5 HP, 3600 RPM, 184TZ FR, 230 Vac, 1 PH, OPAO, Rigid Base, Crop Dryer Motor.

132636.00, 5 HP, 3600 RPM, 184TZ FR, 230 Vac, 1 PH, OPAO, Rigid Base, Crop Dryer Motor.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60/60 Hz
Voltage:230 V
Current:21.3 A
Speed:3510 rpm
Service Factor:1
Phase:1
Efficiency:81 %
Power Factor:92.9
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:G
Frame:184TZ
Enclosure:Open Air Over
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:10
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:.2621 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:16.82 in
Frame Length:11.50 in
Shaft Diameter:1.125 in
Shaft Extension:3.94 in
Assembly/Box Mounting:F1/F2 CAPABLE
