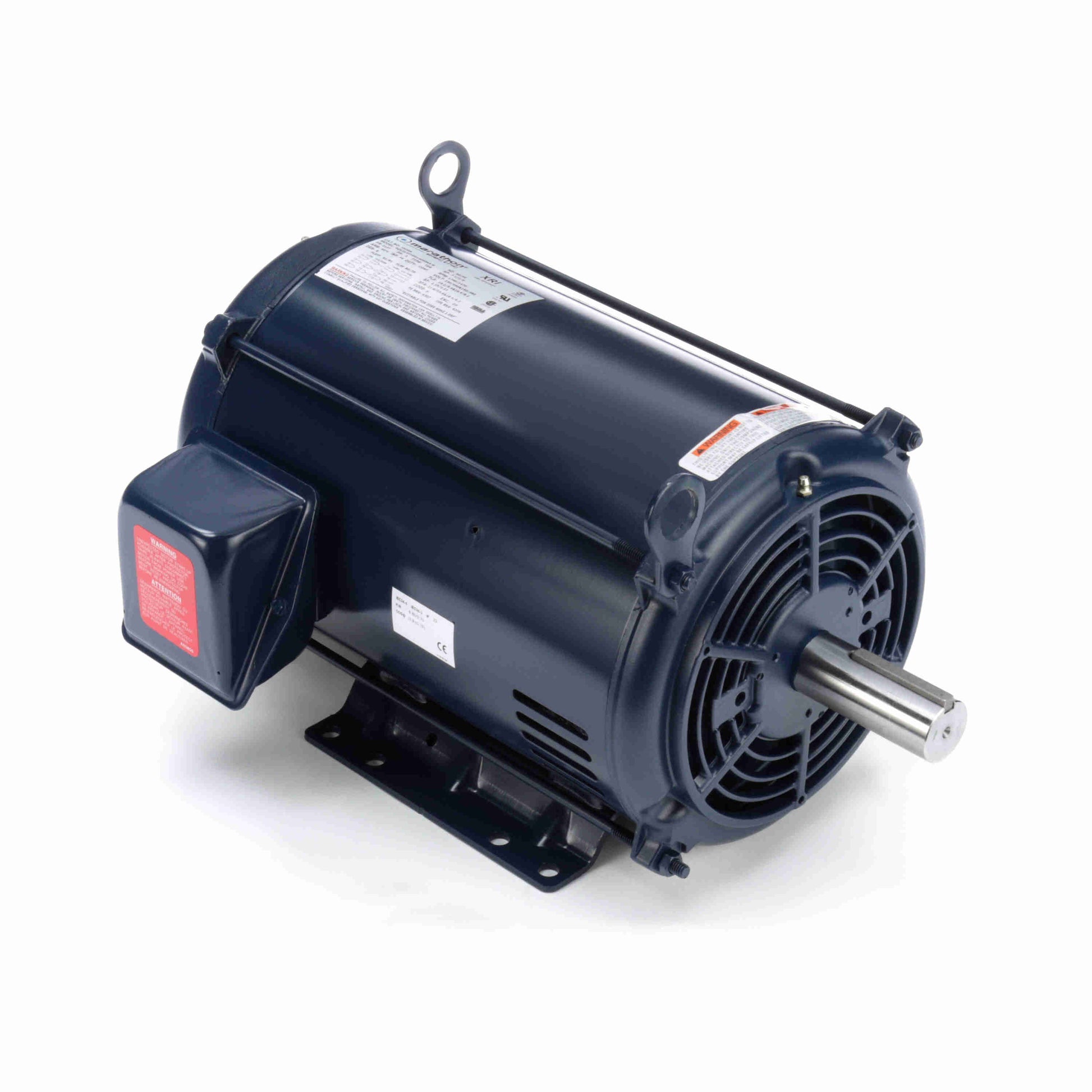

Leeson Electric 141290.00, 10 HP, 1800 RPM, 215T FR, 200/400 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

141290.00, 10 HP, 1800 RPM, 215T FR, 200/400 Vac, 3 PH, TEFC, Rigid Base, Special Voltage Motor.

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60 Hz
Voltage:200/400 V
Current:30.5/15.2 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:77.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:.9 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:20.23 in
Frame Length:11.15 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1 Only
