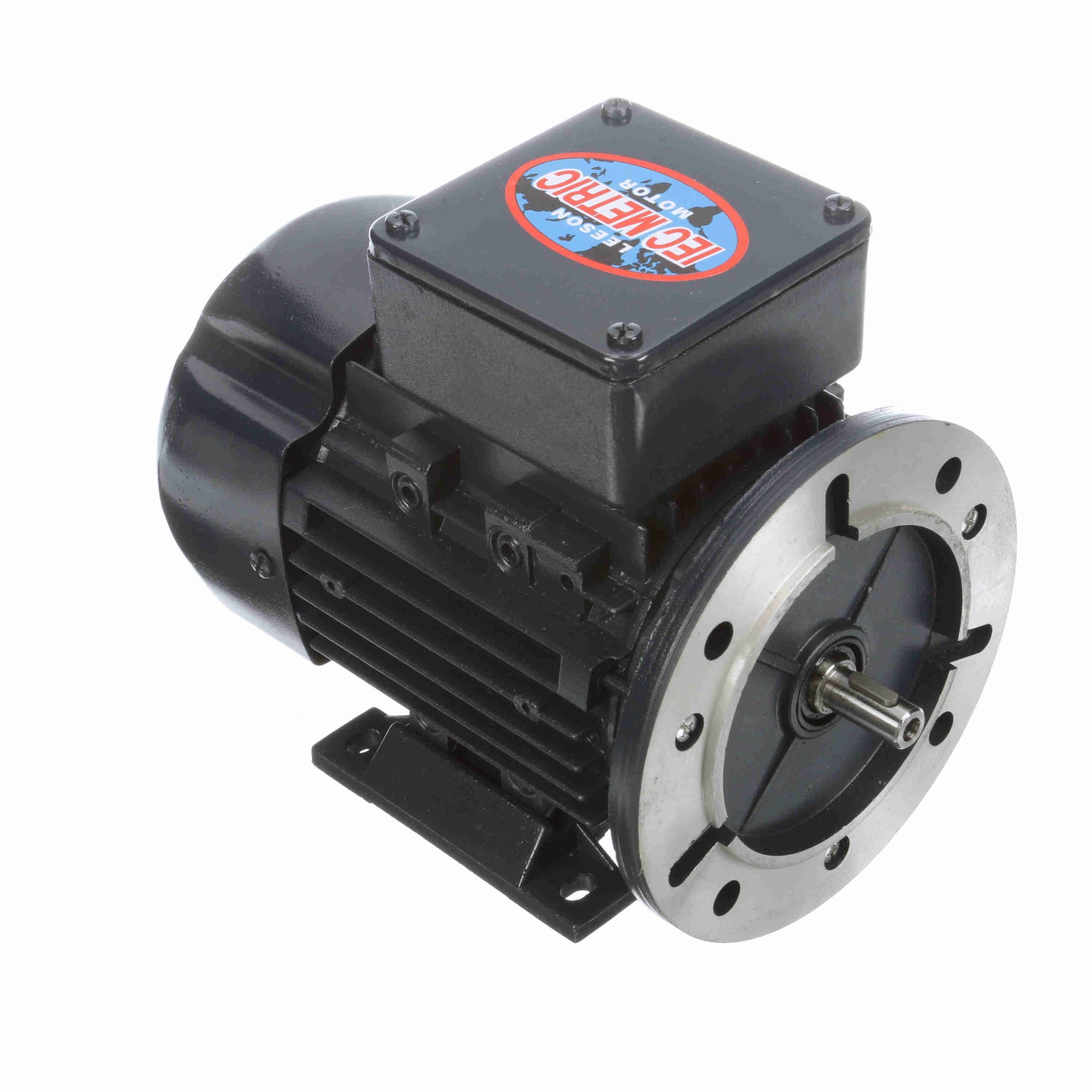

Leeson Electric 192014.00, 1/4 HP-0.19 kW, 3600 RPM, D63D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC)

192014.00, 1/4 HP-0.19 kW, 3600 RPM, D63D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC)

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:0.84/0.42 A
Speed:3430 rpm
Service Factor:1.15
Phase:3
Efficiency:72 %
Power Factor:77
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:D63D
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6202
Opp Drive End Bearing Size:6202
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:23.5 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:IEC
Overall Length:8.54 in
Frame Length:4.44 in
Shaft Diameter:0.437 in
Shaft Extension:0.9 in
Assembly/Box Mounting:F3
