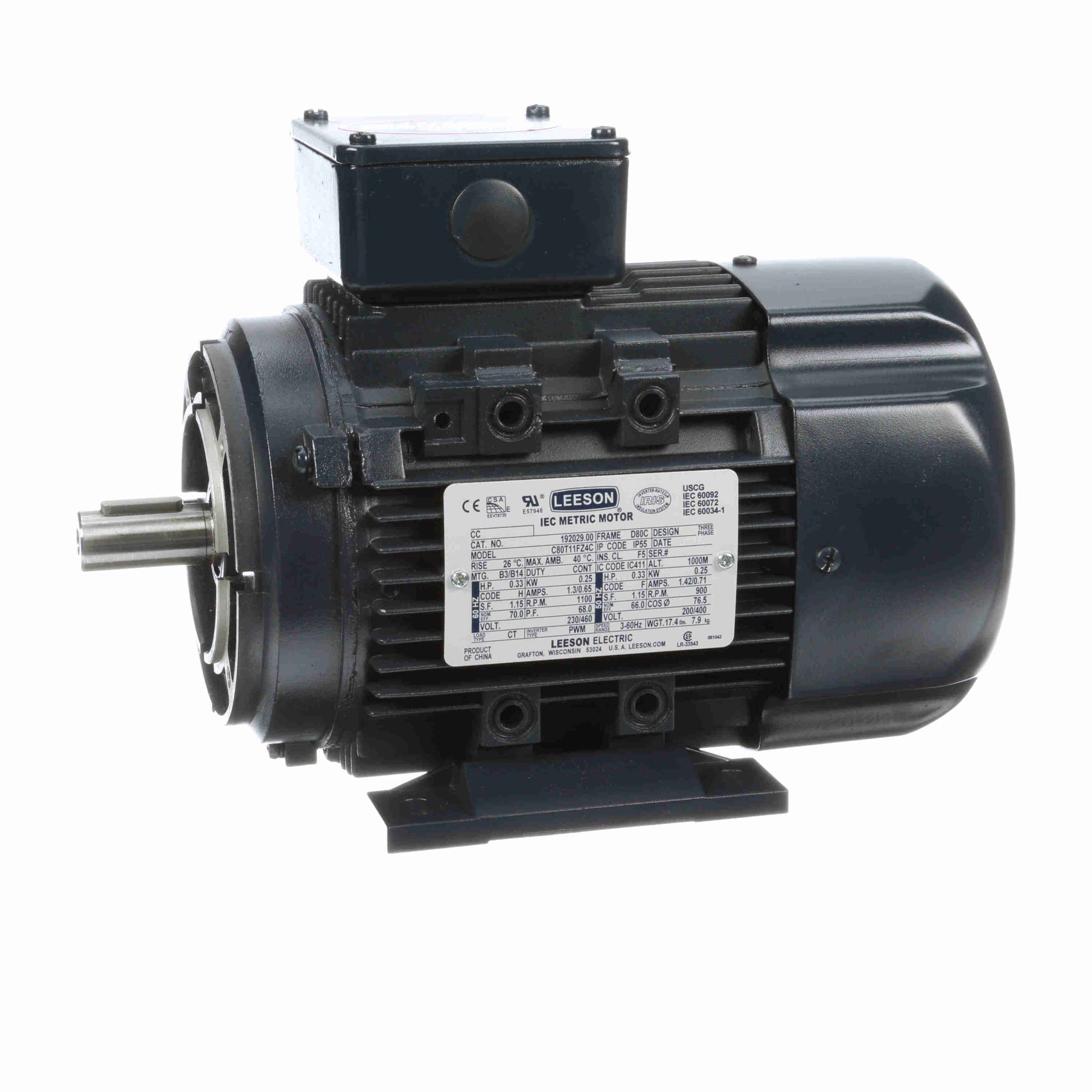

Leeson Electric 192019.00, 1/4 HP-0.18 kW, 1200 RPM, D71C FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B14 Flange, AC Metric Motor (IEC)

192019.00, 1/4 HP-0.18 kW, 1200 RPM, D71C FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B14 Flange, AC Metric Motor (IEC)

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:1.2/0.58 A
Speed:1120 rpm
Service Factor:1.15
Phase:3
Efficiency:64 %
Power Factor:63
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:D71C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:31.6 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:IEC
Overall Length:9.44 in
Frame Length:4.68 in
Shaft Diameter:0.562 in
Shaft Extension:1.18 in
Assembly/Box Mounting:F3
