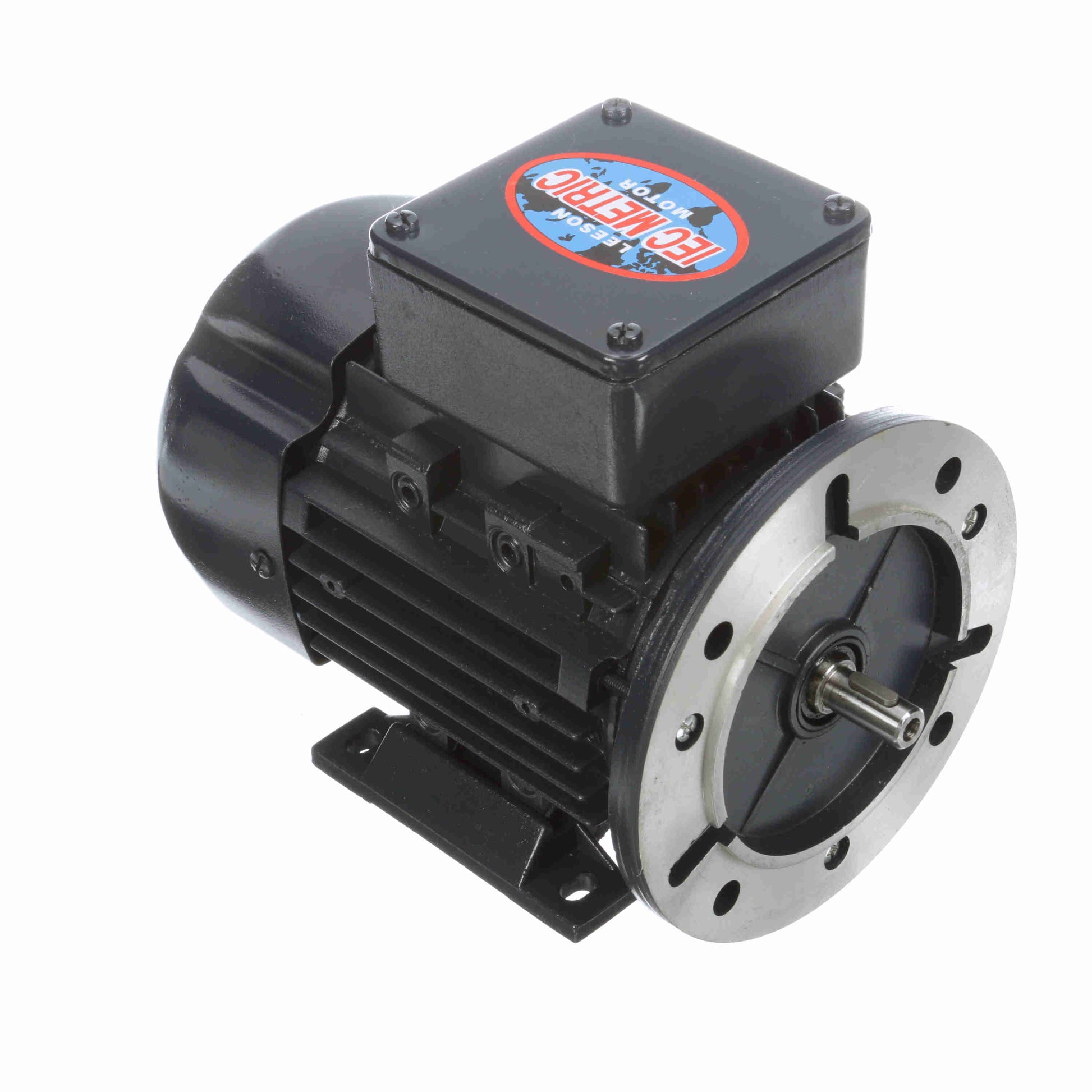

192024.00, 1/3 HP-0.25 kW, 3600 RPM, D63D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC)

**This motor has been replaced by Model# BA2M.33V4D** 192024.00, 1/3 HP-0.25 kW, 3600 RPM, D63D FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3/B5 Flange, AC Metric Motor (IEC) Engineering Data Output HP:0.33 Hp Output KW:0.25 kW Frequency:60/50 Hz Voltage:230/460 V Current:1.1/0.55 A Speed:3430 rpm Service Factor:1.15 Phase:3 Efficiency:72 % Power Factor:78 Duty:Continuous Insulation Class:F Design Code:B KVA Code:J Frame:63 Enclosure:Totally Enclosed Fan Cooled Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6202 Opp Drive End Bearing Size:6202 UL:Recognized CSA:Y CE:YIP Code:55 Technical Specifications Electrical Type:Squirrel Cage Inverter Rated Starting Method:Line Or Inverter Poles:2 Rotation:Reversible Resistance Main:17.85 Ohms Mounting:B3 Motor Orientation:HorizontalDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:AluminumShaft Type:IECOverall Length:8.54 inFrame Length:4.44 in Shaft Diameter:0.437 in Shaft Extension:0.9 in Assembly/Box Mounting:F3
