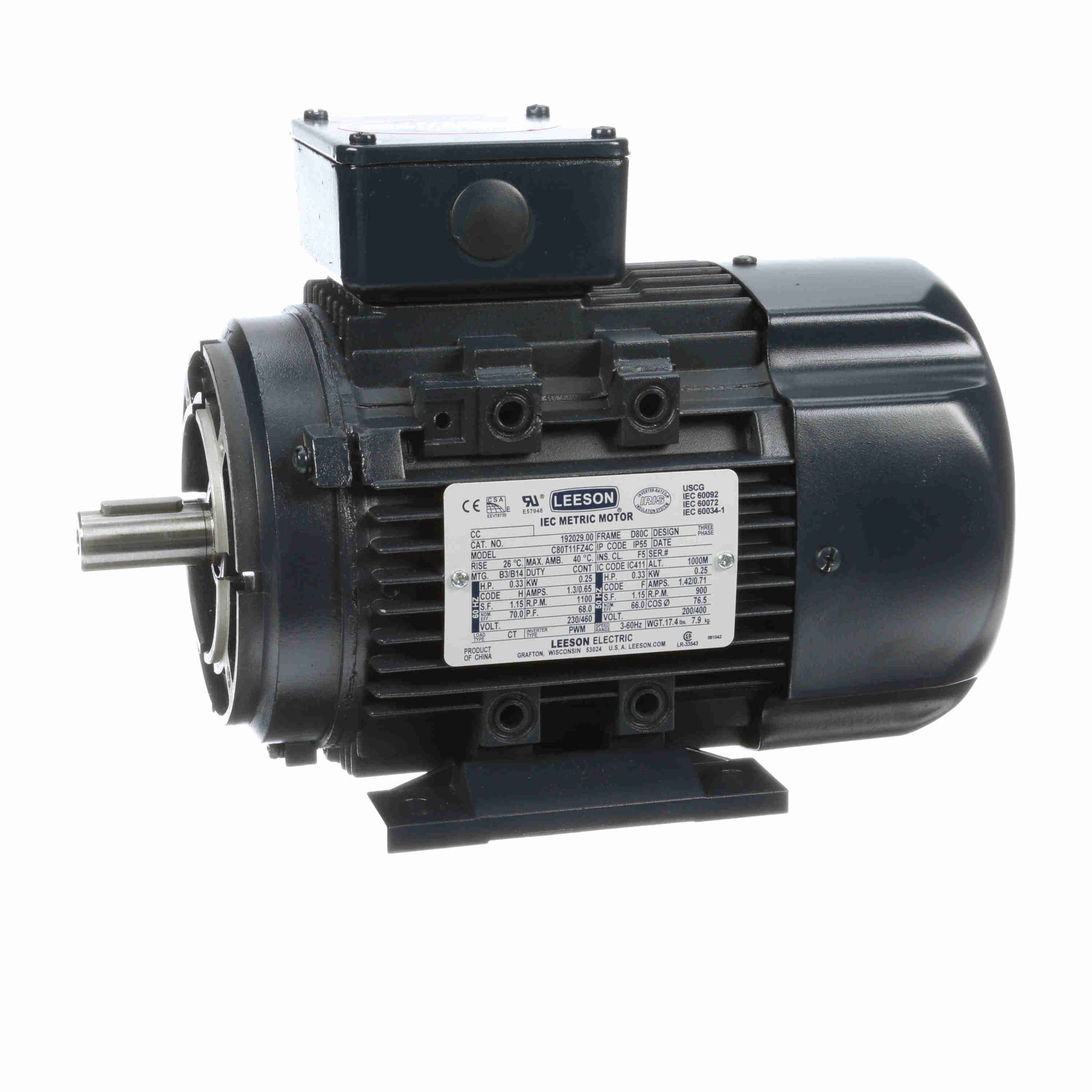

Leeson Electric 192032.00, 1/2 HP-0.37 kW, 1200 RPM, D80 FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3 Flange, AC Metric Motor (IEC)

192032.00, 1/2 HP-0.37 kW, 1200 RPM, D80 FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, B3 Flange, AC Metric Motor (IEC)

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:1.9/0.95 A
Speed:1130 rpm
Service Factor:1.15
Phase:3
Efficiency:72 %
Power Factor:68
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:D80
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6204
Opp Drive End Bearing Size:6204
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:12.3 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Bal
Frame Material:Aluminum
Shaft Type:IEC
Overall Length:11.10 in
Frame Length:5.31 in
Shaft Diameter:0.750 in
Shaft Extension:1.57 in
Assembly/Box Mounting:F3
