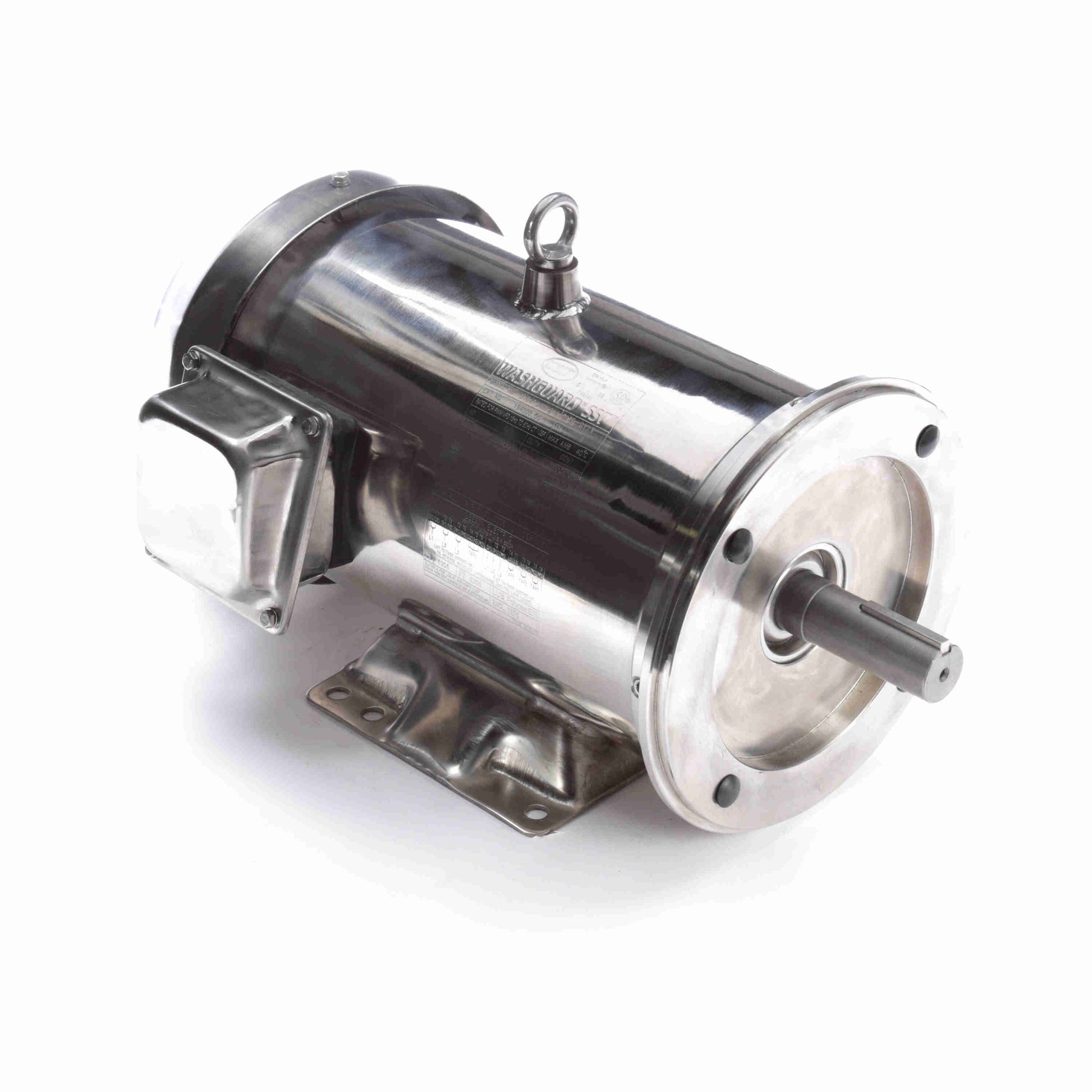

Leeson Electric 194001.00, 3 HP, 1800 RPM, 182TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

194001.00, 3 HP, 1800 RPM, 182TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:7.2/3.6 A
Speed:1745 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6306
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:3.28 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:16.97 in
Frame Length:10.24 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
