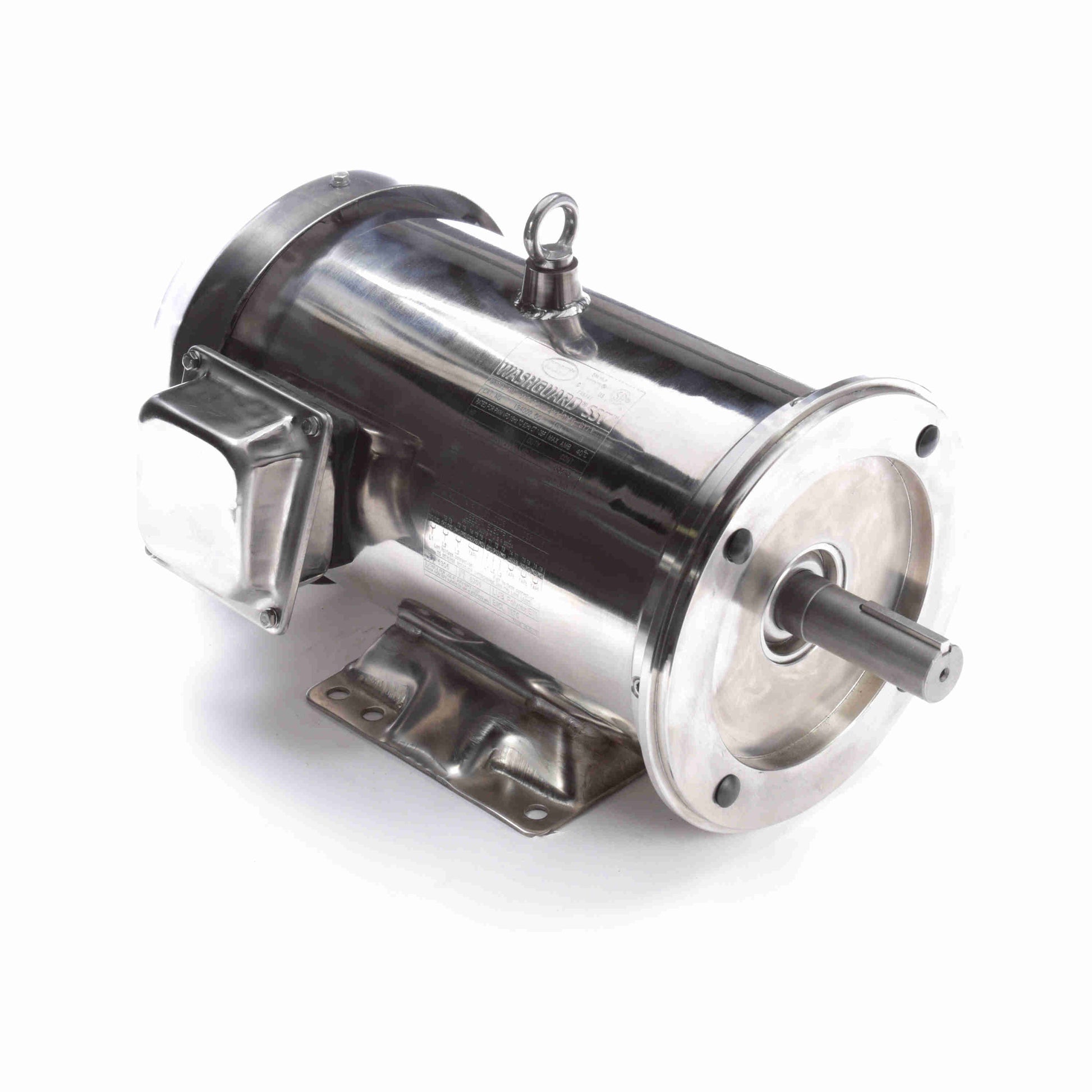

Leeson Electric 194002.00, 5 HP, 3600 RPM, 184TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

194002.00, 5 HP, 3600 RPM, 184TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:11.0/5.5 A
Speed:3520 rpm
Service Factor:1.15
Phase:3
Efficiency:88.5 %
Power Factor:93
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6306
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:2.59 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:16.97 in
Frame Length:11.42 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1 ONLY
