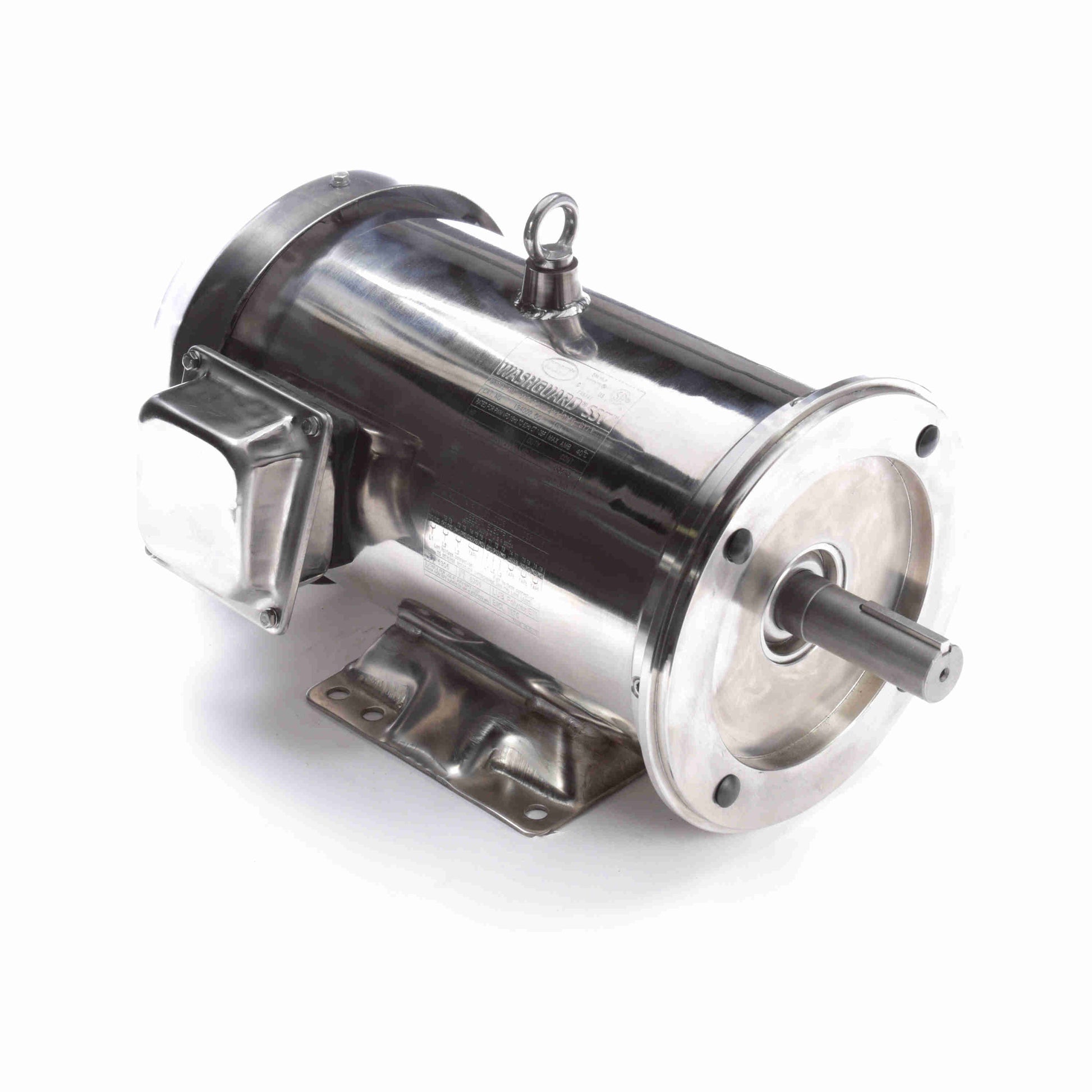

Leeson Electric 194004.00, 7 1/2 HP, 3600 RPM, 213TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

194004.00, 7 1/2 HP, 3600 RPM, 213TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:17.4/8.7 A
Speed:3520 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:89
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:213TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6306
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:1.184 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:21.57 in
Frame Length:13.39 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1 ONLY
