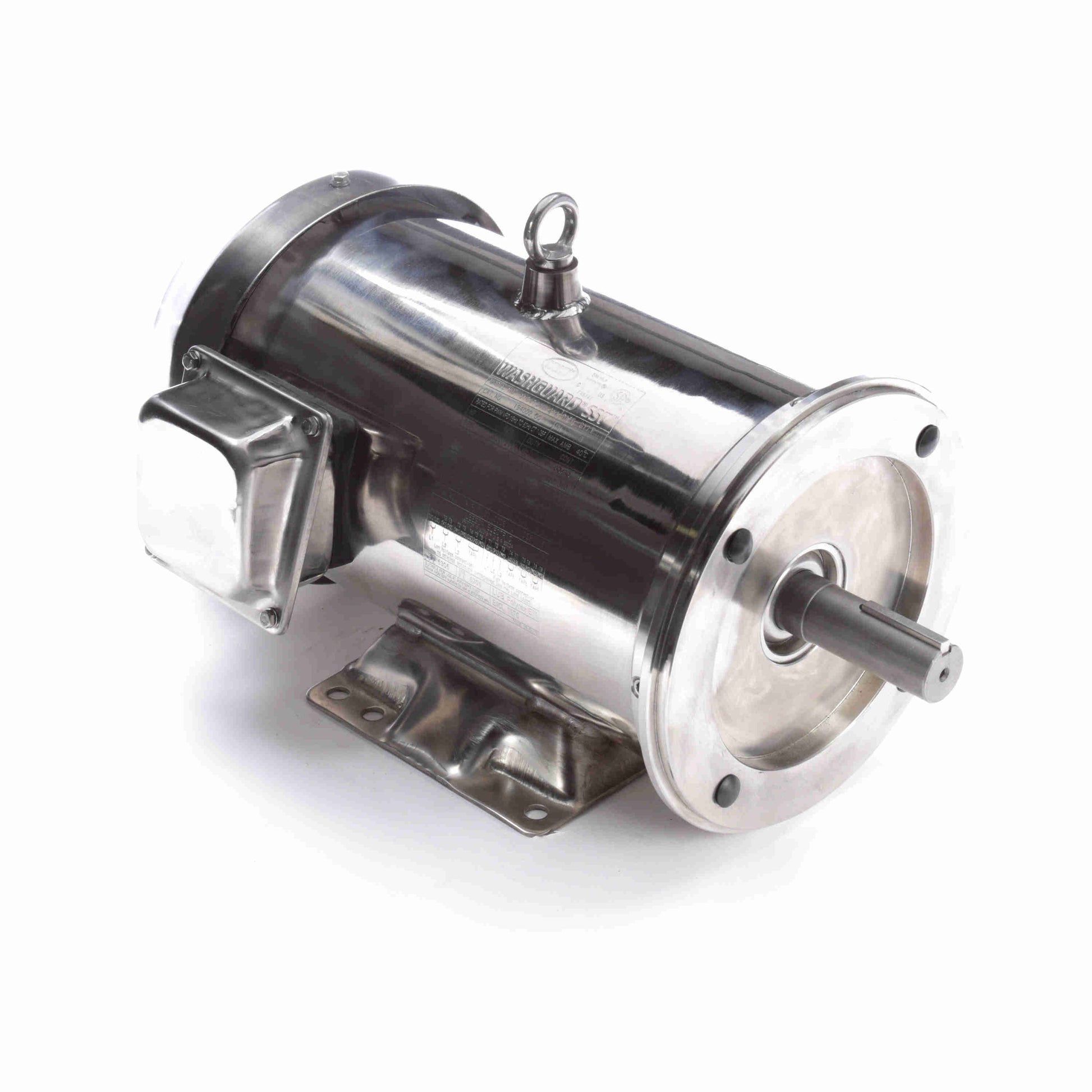

Leeson Electric 194006.00, 10 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

194006.00, 10 HP, 3600 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Engineering Data

Output HP:10 Hp
Output KW:7.5 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:22.8/11.4 A
Speed:3520 rpm
Service Factor:1.15
Phase:3
Efficiency:90.2 %
Power Factor:89
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6306
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:.9582 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:21.57 in
Frame Length:13.39 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
