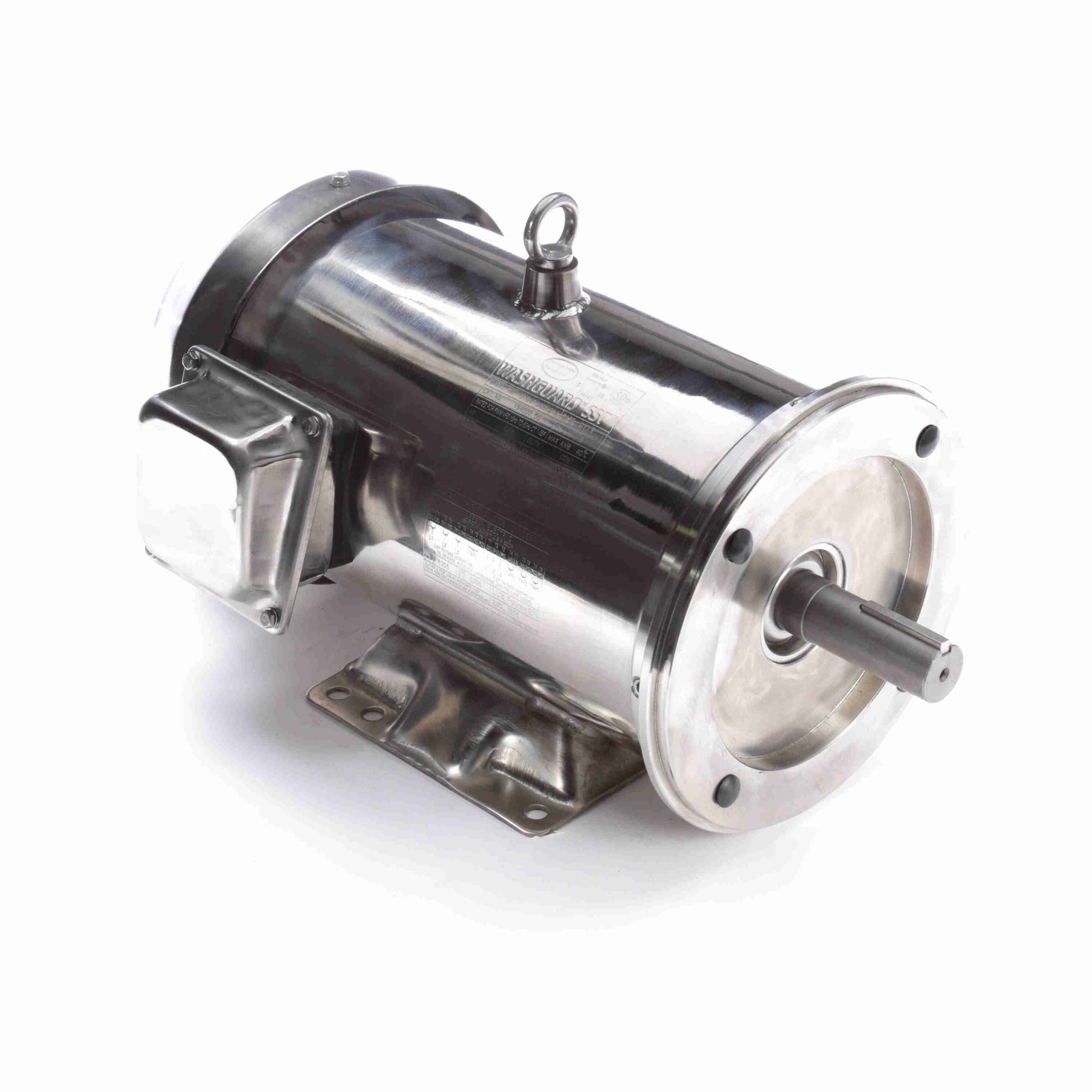

Leeson Electric 194008.00, 15 HP, 3600 RPM, 254TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Leeson Electric 194008.00, 15 HP, 3600 RPM, 254TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

$4,593.30
$4,593.30
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,593.30 $2,480.39
Sale

194008.00, 15 HP, 3600 RPM, 254TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:38.0-34.5/17.2 A
Speed:3550 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:90
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:254TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6211
UL:Recognized
CSA:Y
CE:N
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:23.65 in
Shaft Diameter:1.625 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
