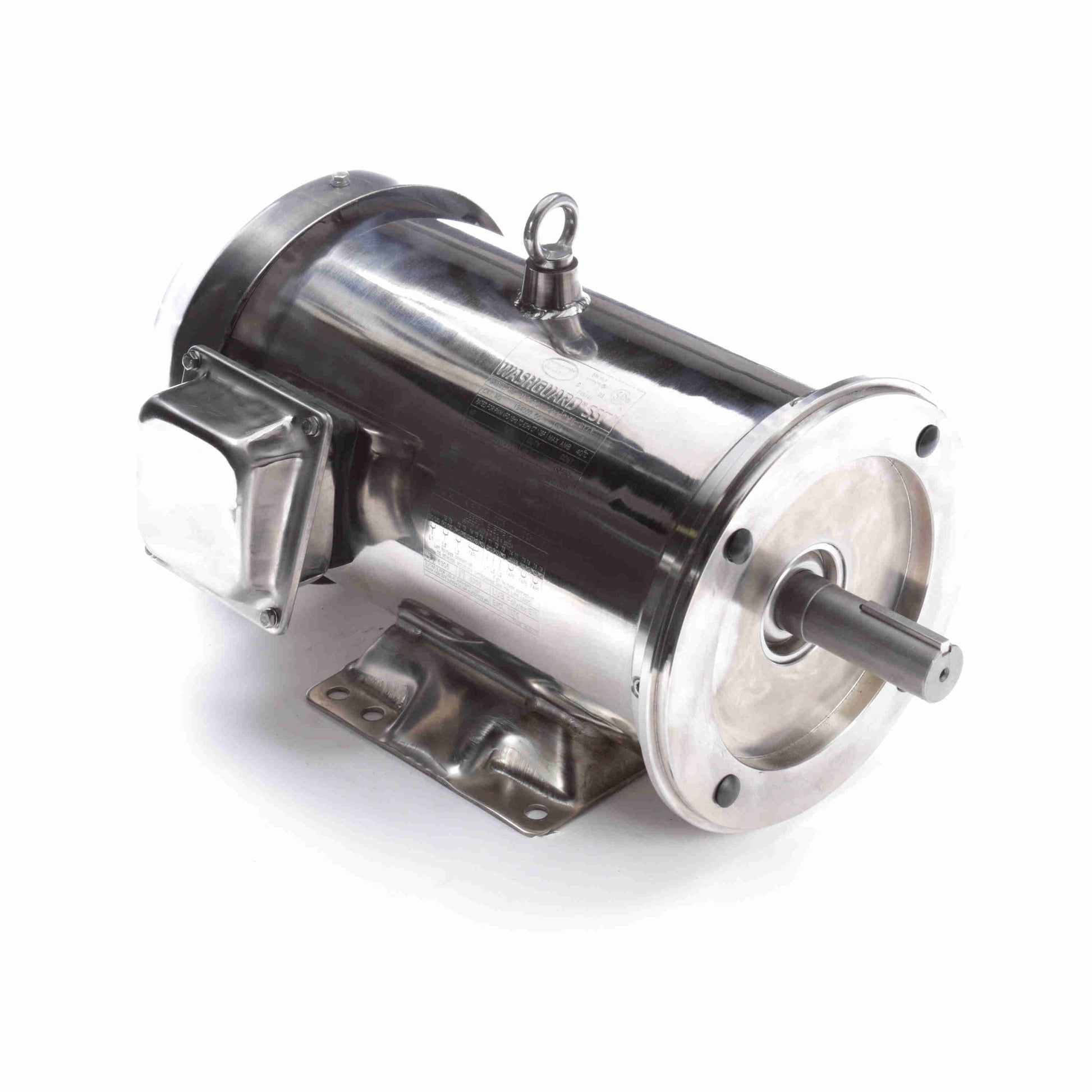

Leeson Electric 194011.00, 20 HP, 1800 RPM, 256TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

Leeson Electric 194011.00, 20 HP, 1800 RPM, 256TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

$5,030.06
$5,030.06
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$5,030.06 $2,716.24
Sale

194011.00, 20 HP, 1800 RPM, 256TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:52.0-47.0/23.6 A
Speed:1770 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:86
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:256TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6211
UL:Recognized
CSA:Y
CE:N
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:25.00 in
Shaft Diameter:1.625 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
