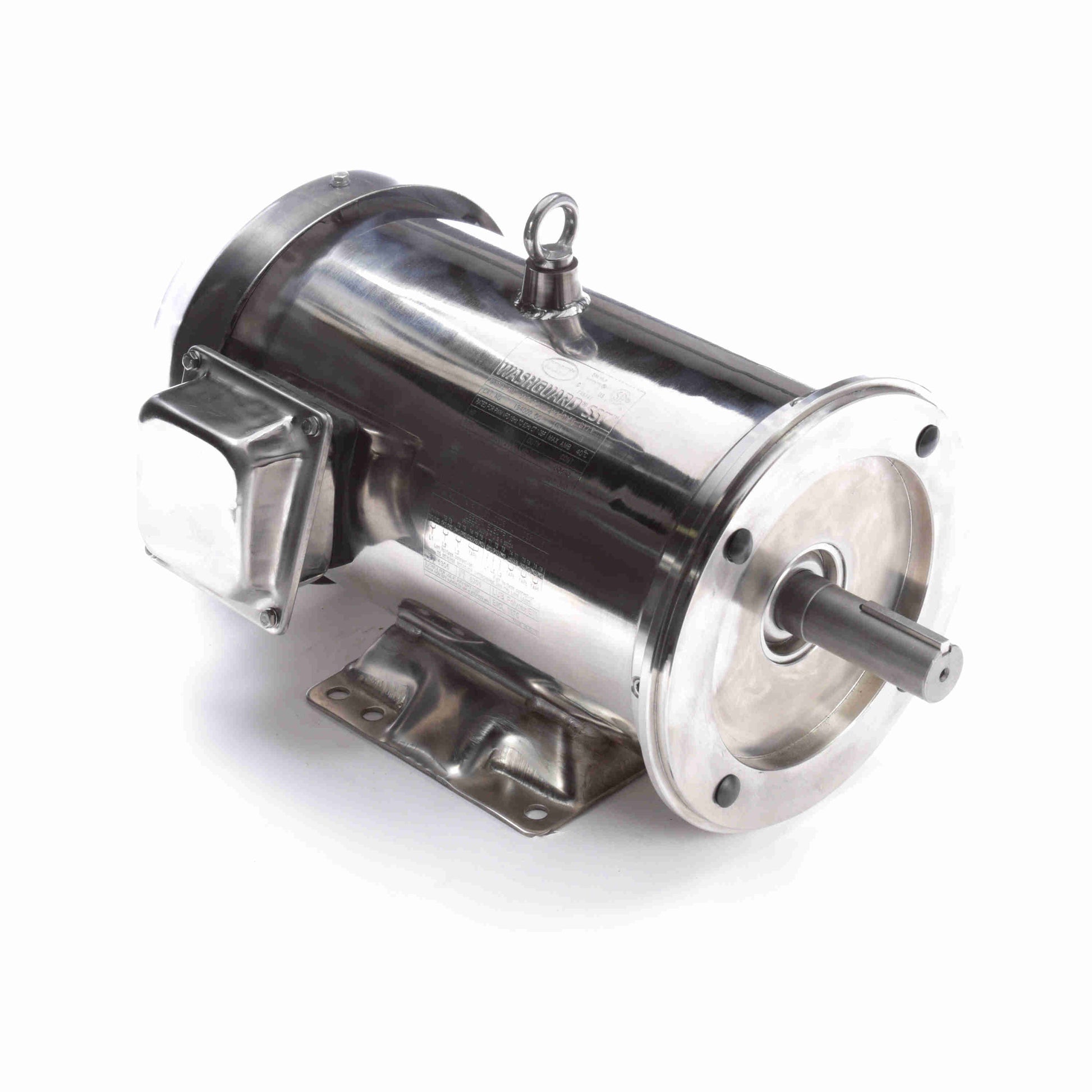

Leeson Electric 194015.00, 30 HP, 1800 RPM, 286TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

Leeson Electric 194015.00, 30 HP, 1800 RPM, 286TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

$6,267.75
$6,267.75
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$6,267.75 $3,384.59
Sale

194015.00, 30 HP, 1800 RPM, 286TC FR, 208-230/460 Vac, 3 PH, TEFC, Rigid Base, All Stainless.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60/50 Hz
Voltage:208-230/460 V
Current:76.0-68.0/34.0 A
Speed:1770 rpm
Service Factor:1.15
Phase:3
Efficiency:93.6 %
Power Factor:87
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:286TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6310
Opp Drive End Bearing Size:6212
UL:Recognized
CSA:Y
CE:N
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Stainless Steel
Shaft Type:T
Overall Length:27.95 in
Shaft Diameter:1.875 in
Shaft Extension:4.64 in
Assembly/Box Mounting:F1/F2 CAPABLE
