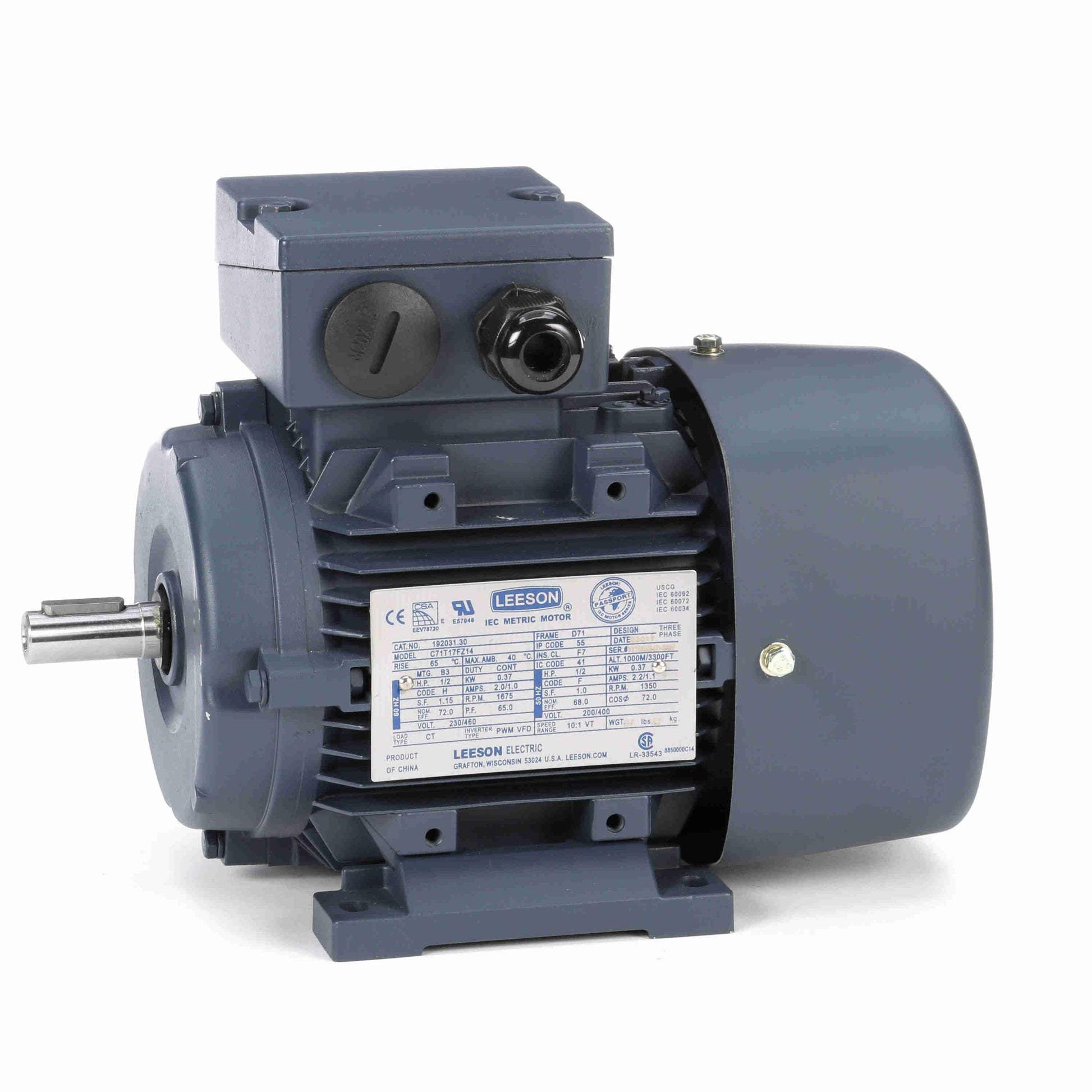

Leeson Electric 194223.00, 1 1/2HP, 1800 RPM, 90S FR, 230/460 Vac, 3 PH, Definite Purpose AC.

194223.00, 1 1/2HP, 1800 RPM, 90S FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:4.2/2.1 A
Speed:1745 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:77
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:K
Frame:90S
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:15.47 in
Frame Length:6.02 in
Shaft Diameter:1.000 in
Shaft Extension:1.96 in
Assembly/Box Mounting:F3
