Industrial Motors

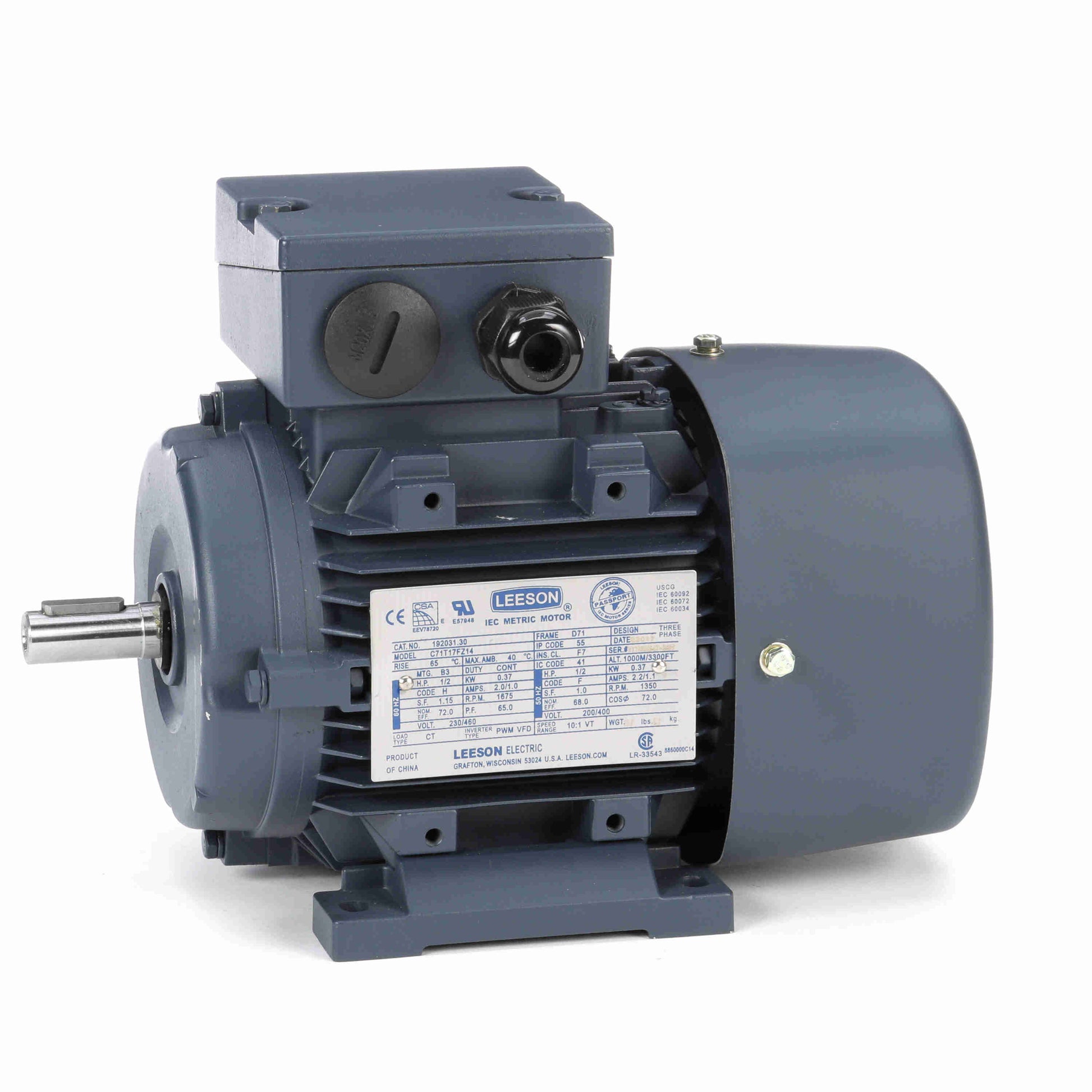

Leeson Electric 194224.00, 2 HP, 1800 RPM, 90L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Leeson Electric 194224.00, 2 HP, 1800 RPM, 90L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

$1,190.72
$1,190.72
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,190.72 $642.99
Sale

194224.00, 2 HP, 1800 RPM, 90L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:230/460 V
Current:5.6/2.8 A
Speed:1740 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:77
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:K
Frame:90L
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:15.47 in
Frame Length:6.02 in
Shaft Diameter:1.000 in
Shaft Extension:1.96 in
Assembly/Box Mounting:F3
