Industrial Motors

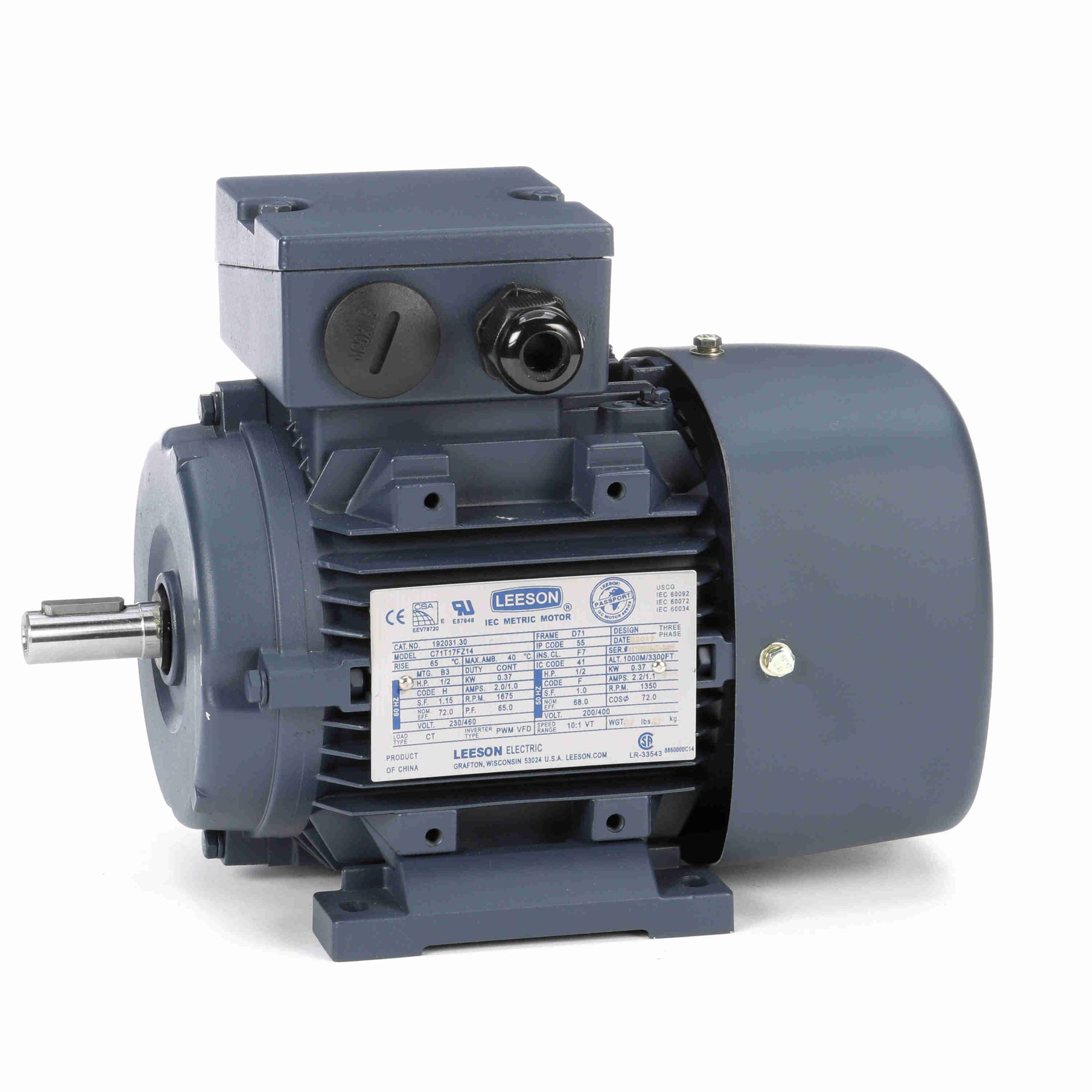

Leeson Electric 194225.00, 3 HP, 1800 RPM, 100L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Leeson Electric 194225.00, 3 HP, 1800 RPM, 100L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

$1,668.35
$1,668.35
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,668.35 $900.91
Sale

194225.00, 3 HP, 1800 RPM, 100L FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:7.8/3.9 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:80
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:L
Frame:100L
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:18.12 in
Frame Length:7.87 in
Shaft Diameter:1.111 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
