Industrial Motors

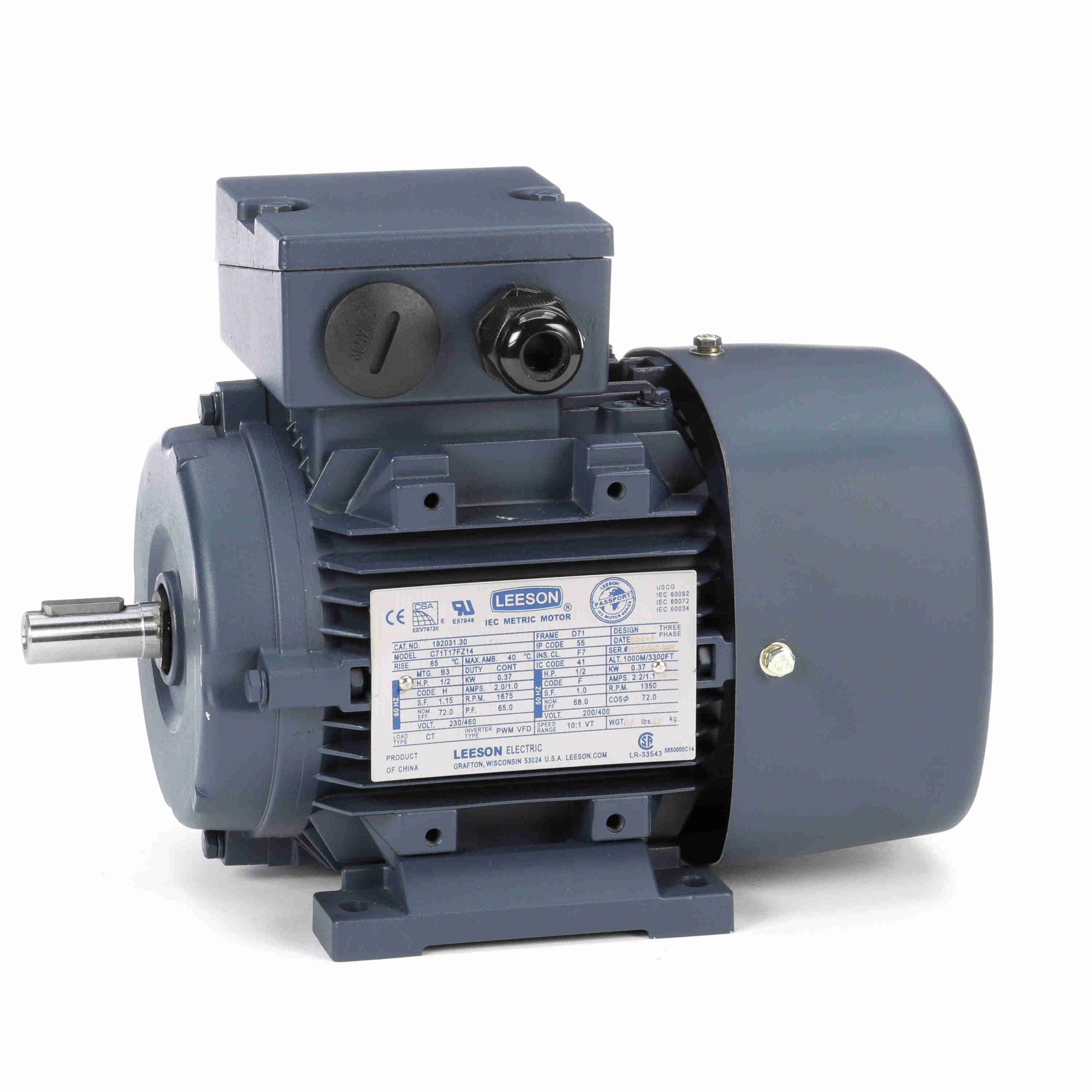

Leeson Electric 194226.00, 4 HP, 1800 RPM, 112M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Leeson Electric 194226.00, 4 HP, 1800 RPM, 112M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

$2,374.73
$2,374.73
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,374.73 $1,282.36
Sale

194226.00, 4 HP, 1800 RPM, 112M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:4 Hp
Output KW:3.0 kW
Frequency:60 Hz
Voltage:230/460 V
Current:10.6/5.3 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:80
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:K
Frame:112M
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:Y
IP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:19.09 in
Frame Length:6.85 in
Shaft Diameter:1.111 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
