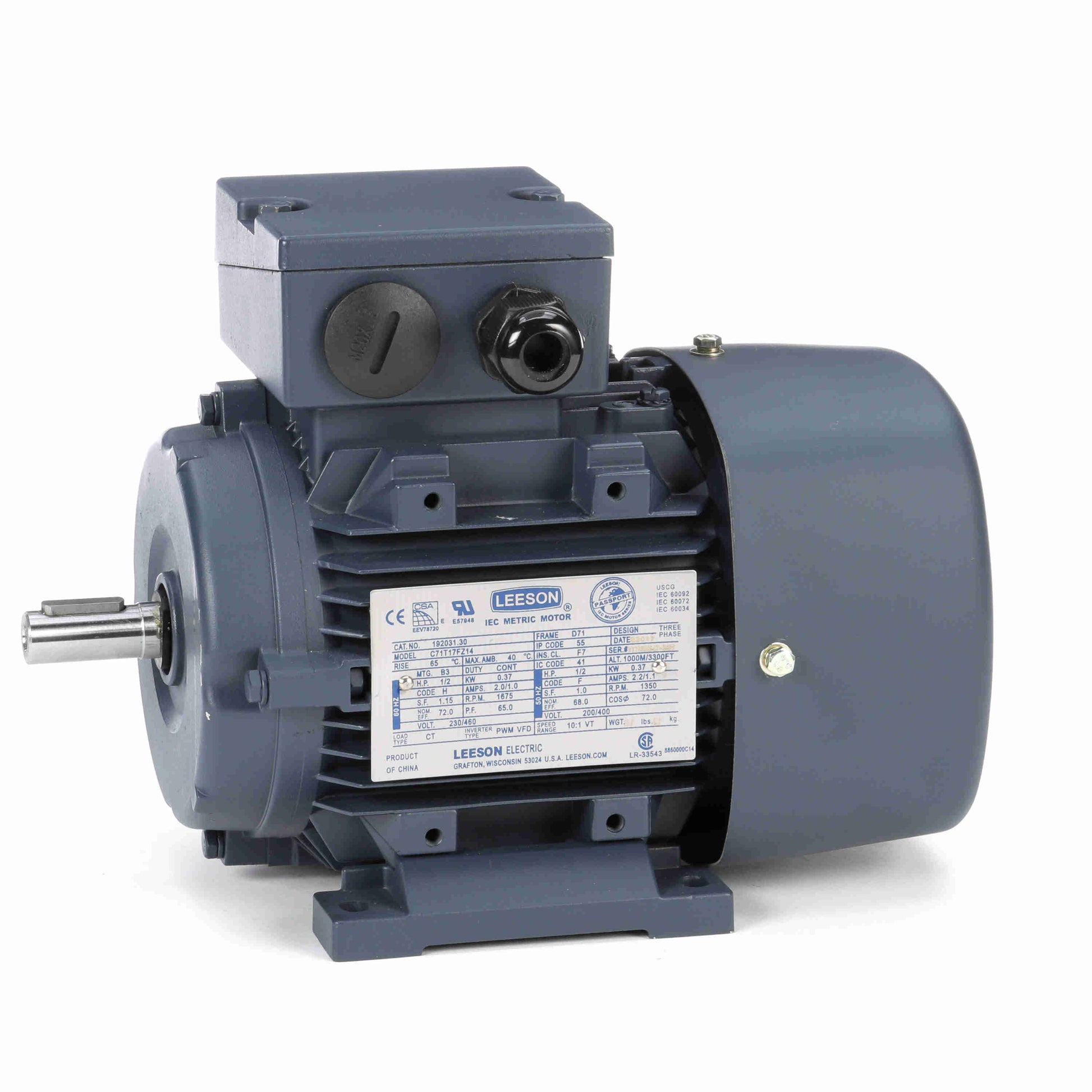

Leeson Electric 194227.00, 5 1/2 HP, 1800 RPM, 112M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

194227.00, 5 1/2 HP, 1800 RPM, 112M FR, 230/460 Vac, 3 PH, Definite Purpose AC.

Engineering Data

Output HP:5.50 Hp
Output KW:4.1 kW
Frequency:60 Hz
Voltage:230/460 V
Current:14.0/7.0 A
Speed:1760 rpm
Service Factor:1.15
Phase:3
Efficiency:89.5 %
Power Factor:82
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:J
Frame:112M
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6306
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:55
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:B3
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:IEC
Overall Length:19.09 in
Frame Length:6.85 in
Shaft Diameter:1.111 in
Shaft Extension:2.36 in
Assembly/Box Mounting:F3
