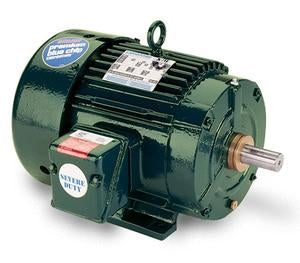

Leeson Electric 811646.00, 1 Hp, 1200 Rpm, 145T FR, 460 Vac, 3 PH, TENV, Rigid Base, IEEE 841, Severe Duty Motor.

811646.00, 1 Hp, 1200 Rpm, 145T FR, 460 Vac, 3 PH, TENV, Rigid Base, IEEE 841, Severe Duty Motor.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:460 V
Current:1.7 A
Speed:1140 rpm
Service Factor:1.15
Phase:3
Efficiency:80 %
Power Factor:64.7
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:145T
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:N
IP Code:56
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:6
Rotation:Reversible
Resistance Main:20.05 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:11.43 in
Frame Length:6.25 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
