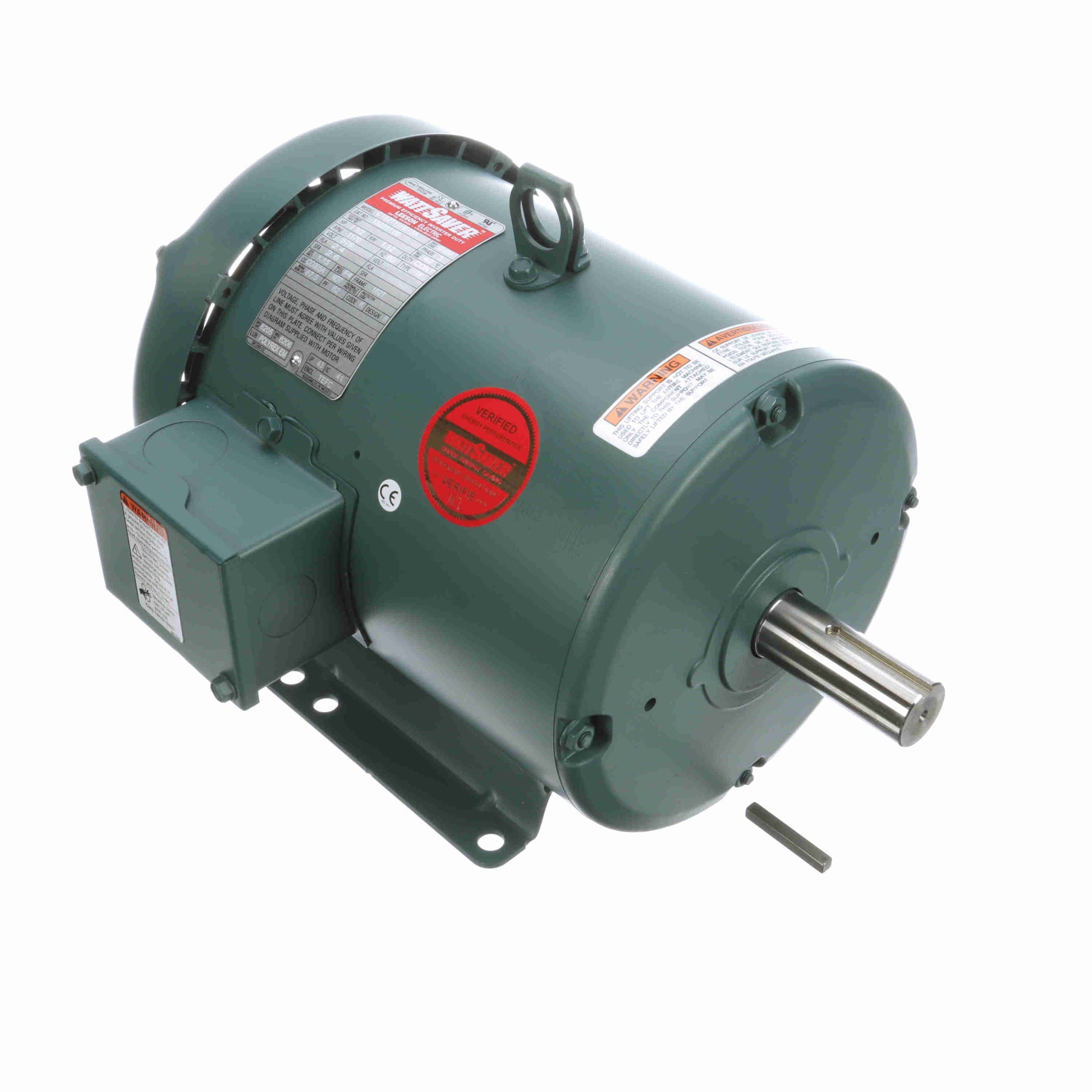

Leeson Electric 825403.00, 3 HP, 900 RPM, 215T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

825403.00, 3 HP, 900 RPM, 215T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:10.0/5.0 A
Speed:875 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:66.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:H
Frame:215T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6208
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:8
Rotation:Reversible
Resistance Main:3.5 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:19.63 in
Frame Length:9.12 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
