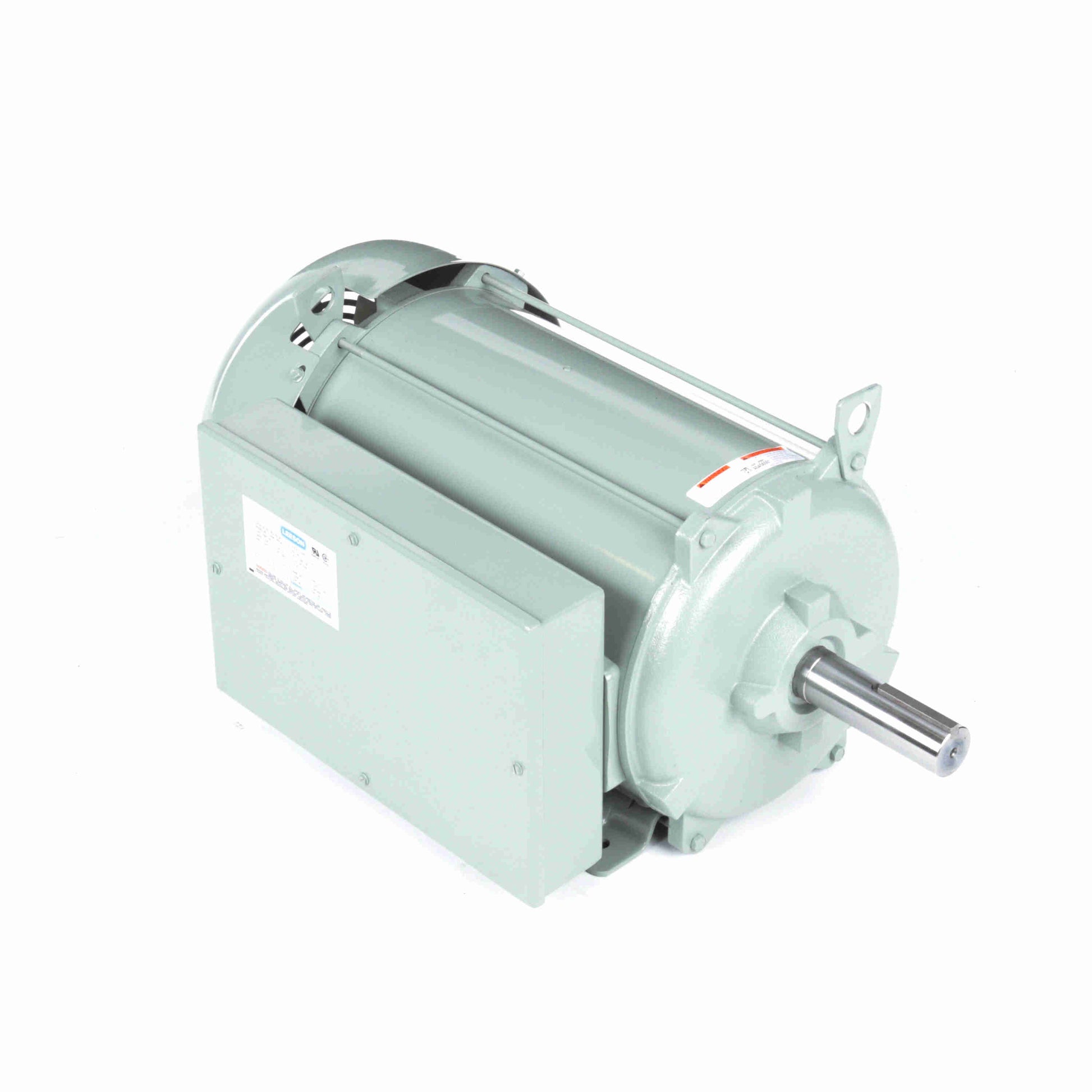

Leeson Electric 851034.00, 16 HP, 1800 RPM, 256TZ FR, 208/230 Vac, 1 PH, General Purpose Motor, High Efficiency.

851034.00, 16 HP, 1800 RPM, 256TZ FR, 208/230 Vac, 1 PH, General Purpose Motor, High Efficiency.

Engineering Data

Output HP:16 Hp
Output KW:11.9 kW
Frequency:60 Hz
Voltage:208-230 V
Current:70.0-61.0 A
Speed:1760 rpm
Service Factor:1.15
Phase:1
Efficiency:91 %
Power Factor:93.7
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:E
Frame:256TZ
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:NIP Code:12
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.089 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:25.52 in
Frame Length:15.50 in
Shaft Diameter:1.625 in
Shaft Extension:5 in
Assembly/Box Mounting:F1 ONLY
