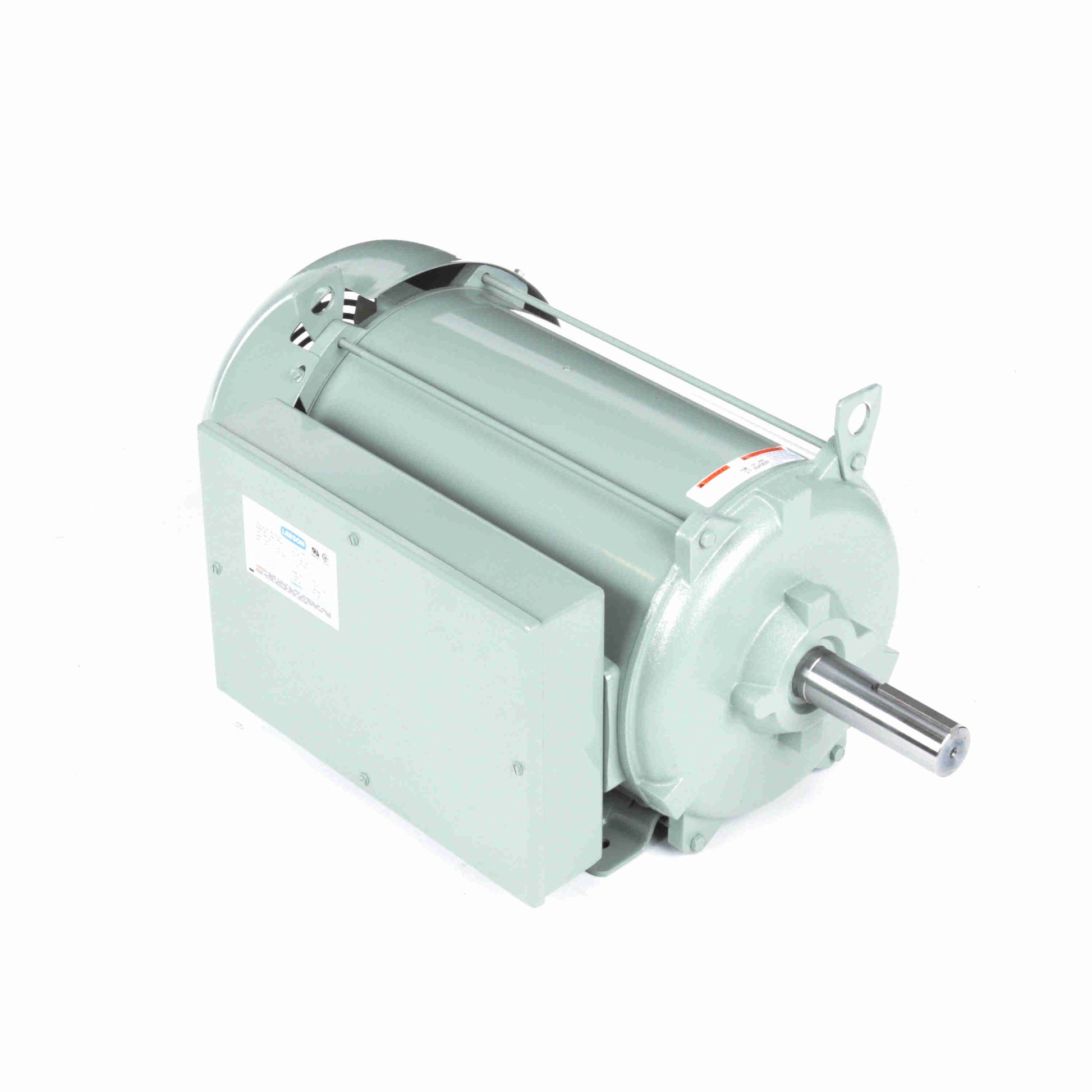

Leeson Electric 851150.00, 15 HP, 1800 RPM, 256TZ FR, 208/230 Vac, 1 PH, General Purpose Motor, High Efficiency.

851150.00, 15 HP, 1800 RPM, 256TZ FR, 208/230 Vac, 1 PH, General Purpose Motor, High Efficiency.

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60 Hz
Voltage:208-230 V
Current:64.5-58.0 A
Speed:1765 rpm
Service Factor:1
Phase:1
Efficiency:89 %
Power Factor:94.6
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:F
Frame:256TZ
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.089 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:28.65 in
Frame Length:15.50 in
Shaft Diameter:1.625 in
Shaft Extension:5.25 in
Assembly/Box Mounting:F1 Only
