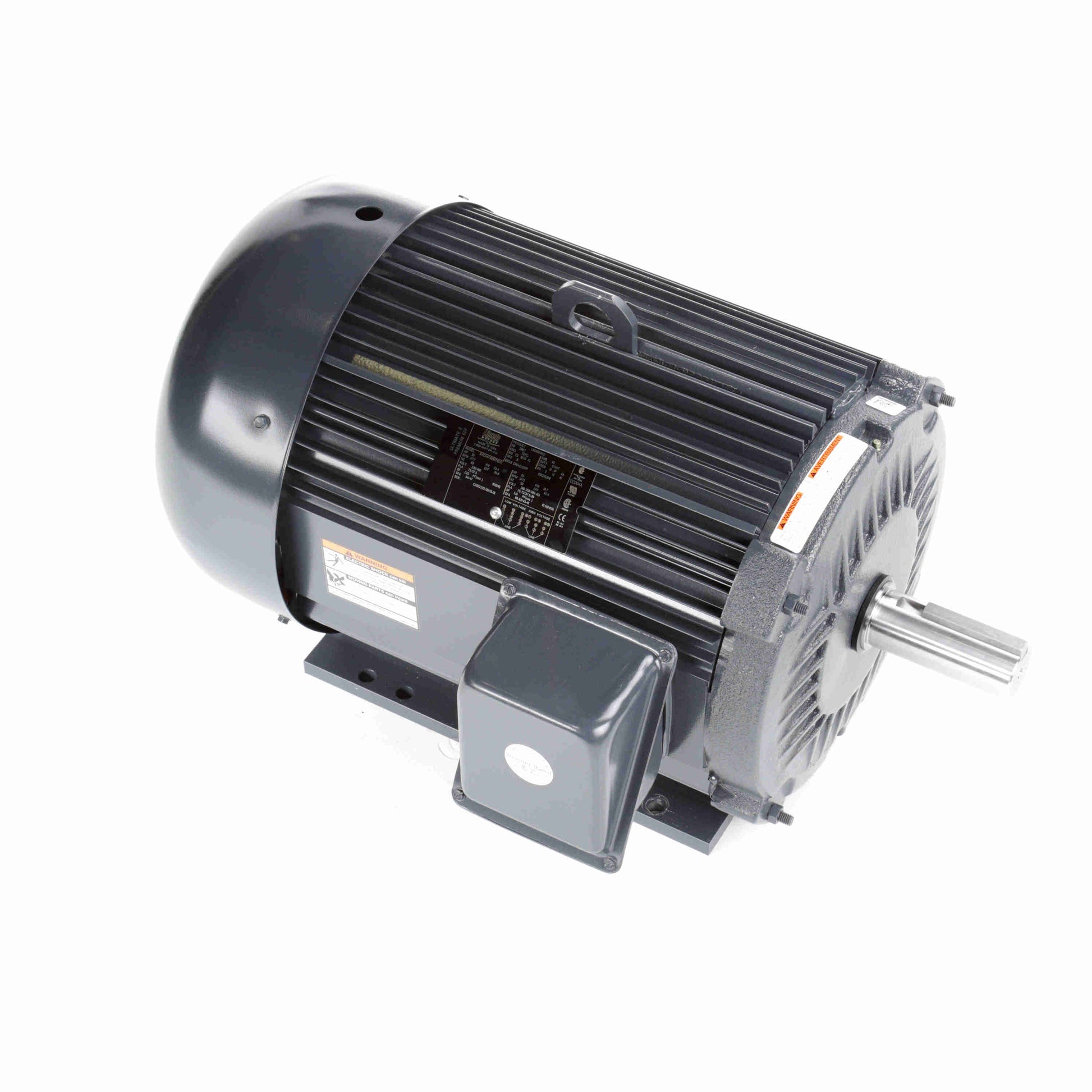

Leeson Electric LM13960, 25 HP, 3600 RPM, 284TS FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose.

LM13960, 25 HP, 3600 RPM, 284TS FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose.

Engineering Data

Output HP:25 Hp
Output KW:18.7 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:56.0/28.0 A
Speed:3535 rpm
Service Factor:1.25
Phase:3
Efficiency:92.4 %
Power Factor:90.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:284TS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312Opp Drive End Bearing Size:6209
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:2
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:TS
Overall Length:25.25 in
Frame Length:13.75 in
Shaft Diameter:1.625 in
Shaft Extension:3.25 in
Assembly/Box Mounting:F1/F2 CAPABLE
