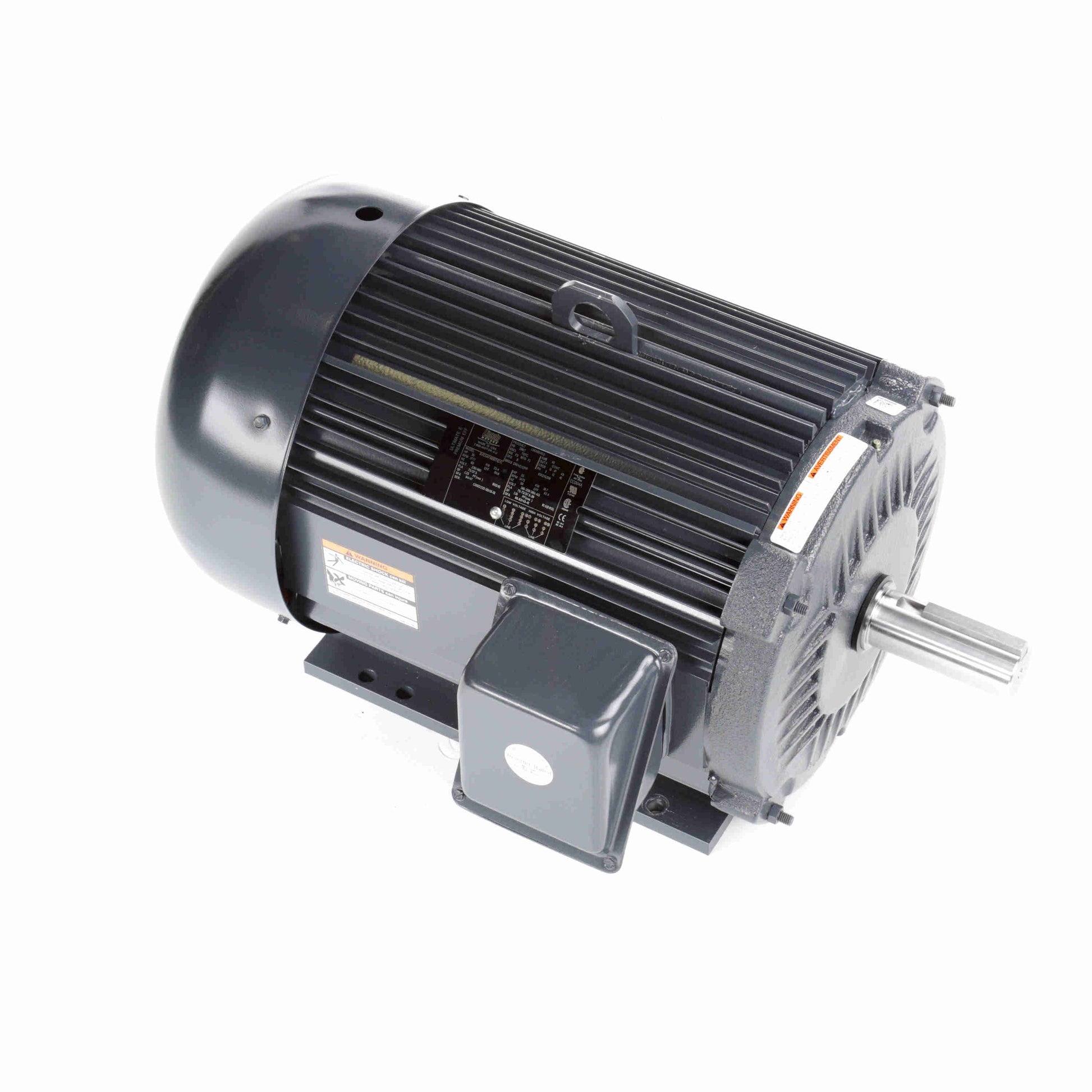

Leeson Electric LM16030, 3 HP, 1800 RPM, 213T FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16030, 3 HP, 1800 RPM, 213T FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.8/4.4 A
Speed:1175 rpm
Service Factor:1.25
Phase:3
Efficiency:89.5 %
Power Factor:71.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:213T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6208
Opp Drive End Bearing Size:6206
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:2.7431 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:17.34 in
Frame Length:8.00 in
Shaft Diameter:1.375 in
Shaft Extension:3.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
