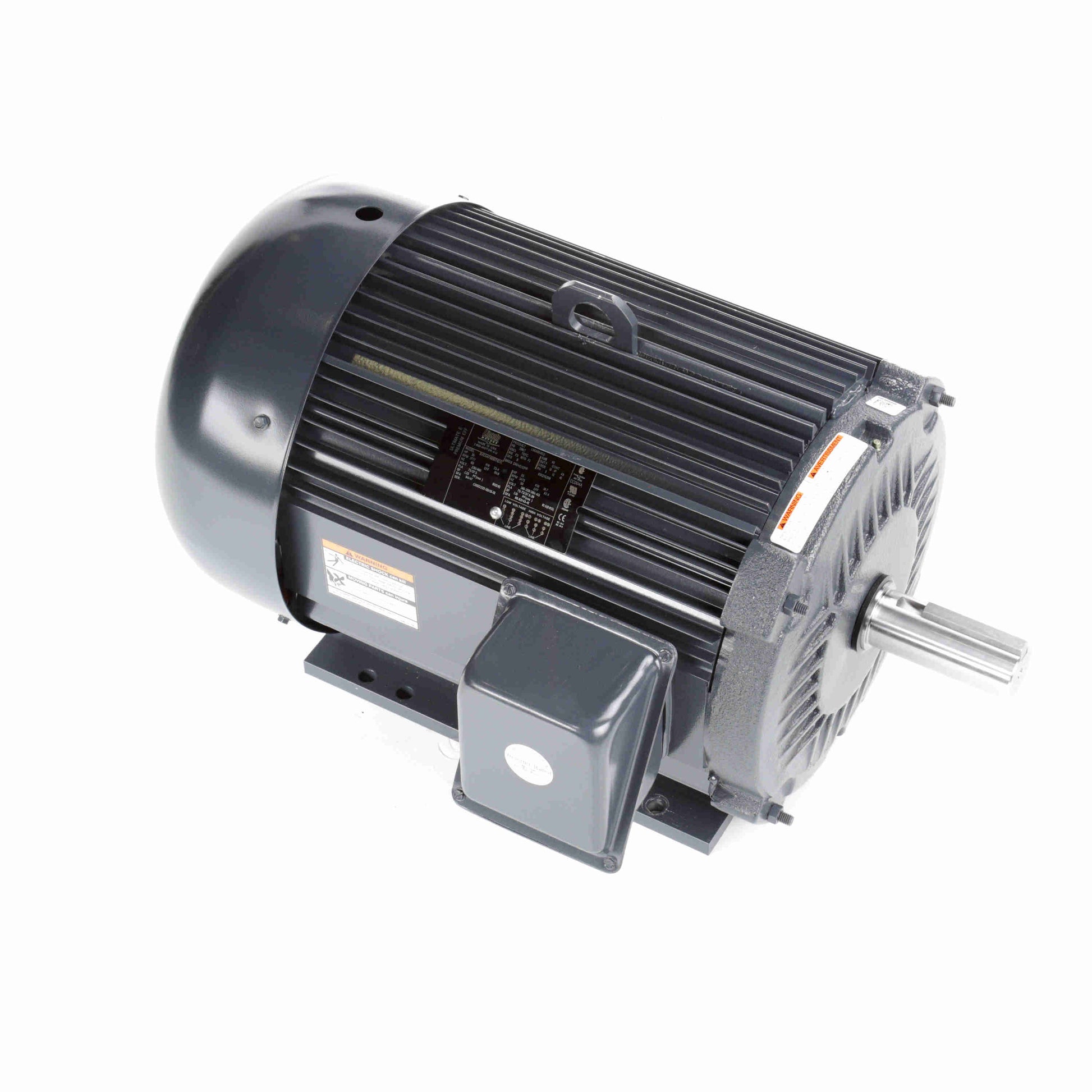

Leeson Electric LM33624, 5 HP, 1800 RPM, 184T FR, 200/400 Vac, TEFC, 3 PH, Rigid Base, General Purpose Motor.

LM33624, 5 HP, 1800 RPM, 184T FR, 200/400 Vac, TEFC, 3 PH, Rigid Base, General Purpose Motor.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:200/400 V
Current:14.5/7.3 A
Speed:1760 rpm
Service Factor:1
Phase:3
Efficiency:89.5 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:2.68 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:14.96 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.75 in
Assembly/Box Mounting:F1/F2 CAPABLE
