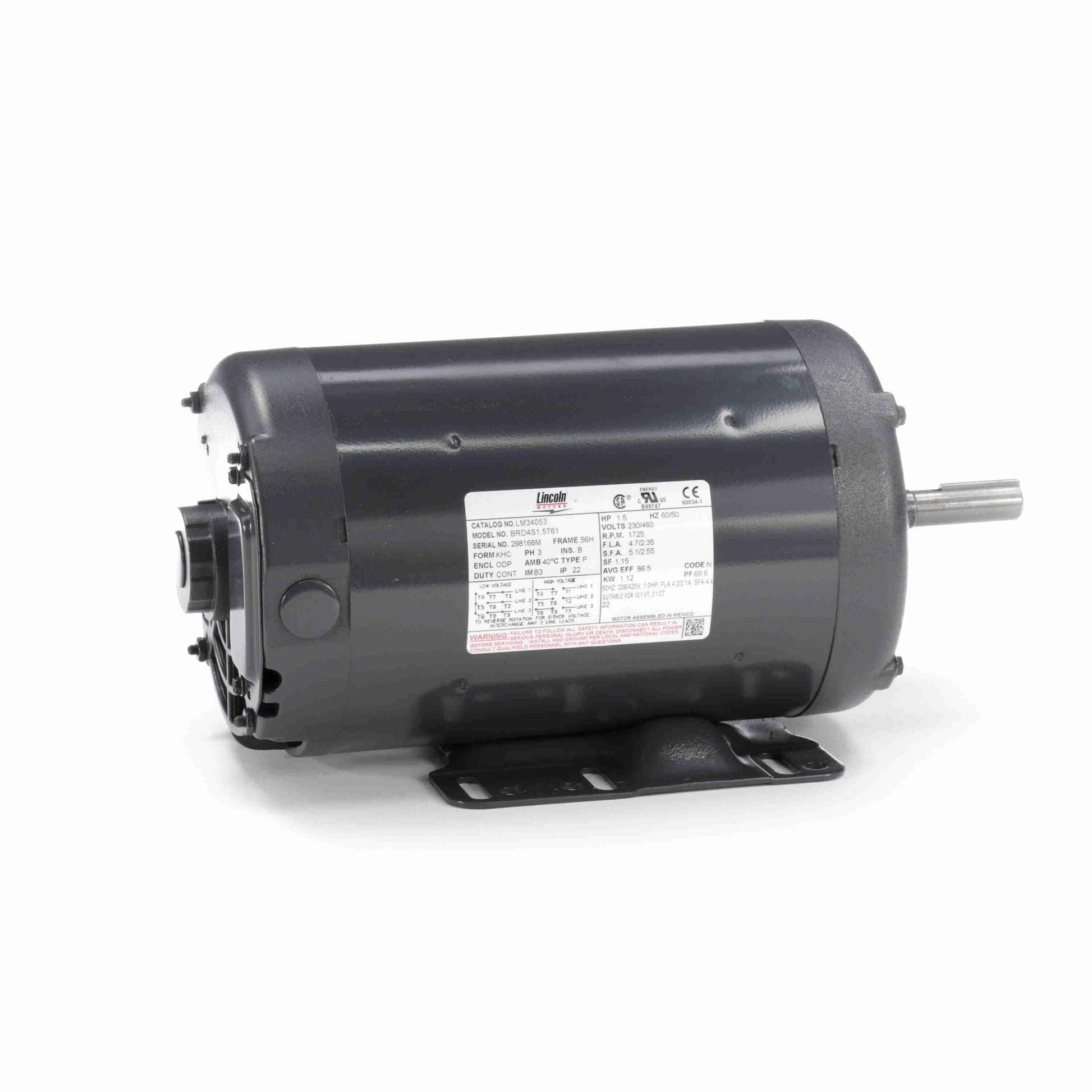

Leeson Electric LM34053, 1 1/2 HP, 1800 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

LM34053, 1 1/2 HP, 1800 RPM, 56H FR, 230/460 Vac, 3 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:1.50 Hp
Output KW:1.1 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:4.6/2.3 A
Speed:1725 rpm
Service Factor:1.15
Phase:3
Efficiency:86.5 %
Power Factor:70
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:M
Frame:56H
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:6 Ohms
Mounting:Rigid Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:14.07 in
Frame Length:7.88 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
