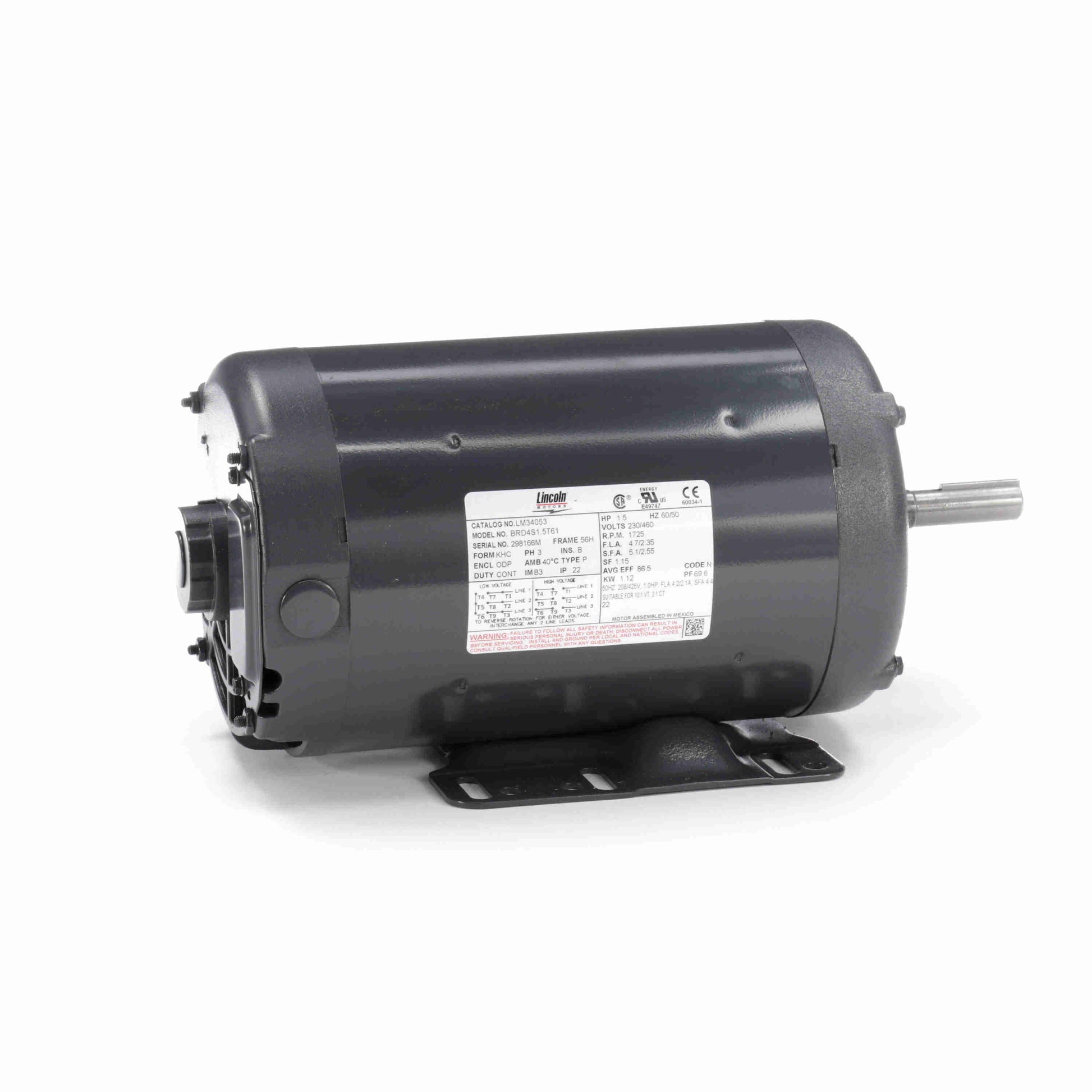

Leeson Electric LM34060, 2 HP, 1800 RPM, 56C FR, 115/230 Vac, 1 PH, DP, General Purpose.

LM34060, 2 HP, 1800 RPM, 56C FR, 115/230 Vac, 1 PH, DP, General Purpose.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:115/230 V
Current:12.6/6.3 A
Speed:1725 rpm
Service Factor:1.15
Phase:1
Efficiency:84.5 %
Power Factor:90.2
Duty:Continuous
Insulation Class:F
Design Code:No Design Code
KVA Code:J
Frame:56C
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:.89 Ohms
Mounting:Round
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:14.10 in
Frame Length:8.38 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
